CLUTCH SYSTEM
CS-501SX, CS-501SXH
501sx
38

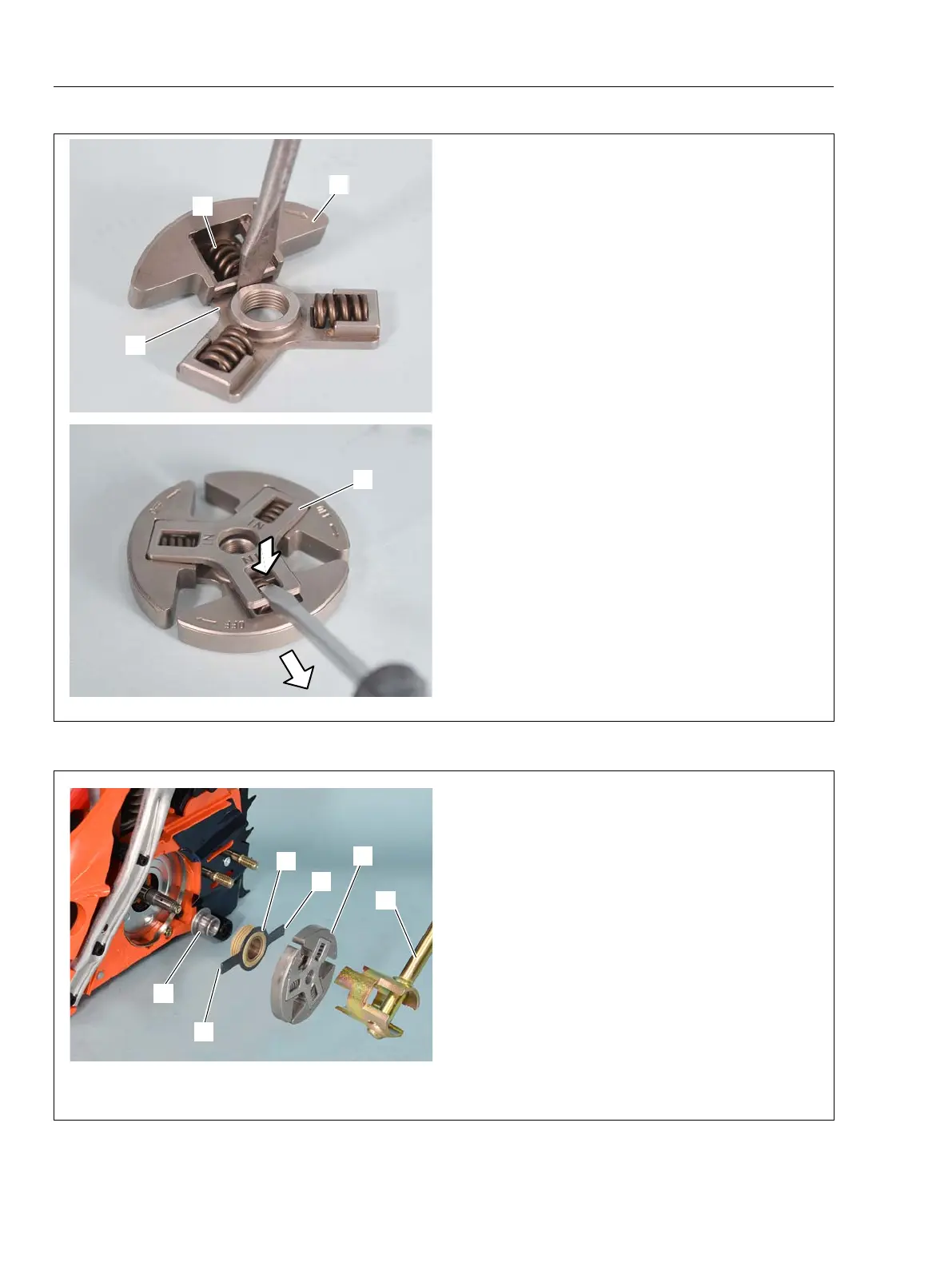

5-3 Installing clutch assembly
1. Install collar (A) and worm gear (B) in the order
shown, making sure collar and worm gear are en-
gaging.
2. Install clutch assembly (C; Left-hand thread) to
crankshaft turning anticlockwise by hand until it
can not be turned further.
NOTE:
If starter assembly is installed, untie tem-
porary knot holding starter grip (tied in the first
NOTE of “5-1 Inspecting clutch parts”). While hold-
ing starter grip, turn clutch assembly anticlockwise
until it cannot rotate further.
3. Tighten clutch assembly (C) with Clutch tool
X640-000370 (D).
5-2 Replacing clutch parts
1. Install three clutch spring (A) to outside clutch
hub (B).
2. Set three clutch shoes (C) to each arms of
clutch hub (B) by fl at head screwdriver.
3. Set inside clutch hub (D) to clutch assembly by
small fl at head screwdriver.
D
C
B
A
C
A
D
B
b
b
