Echo shindaiwa CS-501SX

GUIDE BAR MOUNTING SYSTEM
CS-501SX, CS-501SXH
501sx
70
(A)
(B)
(C)
(E)

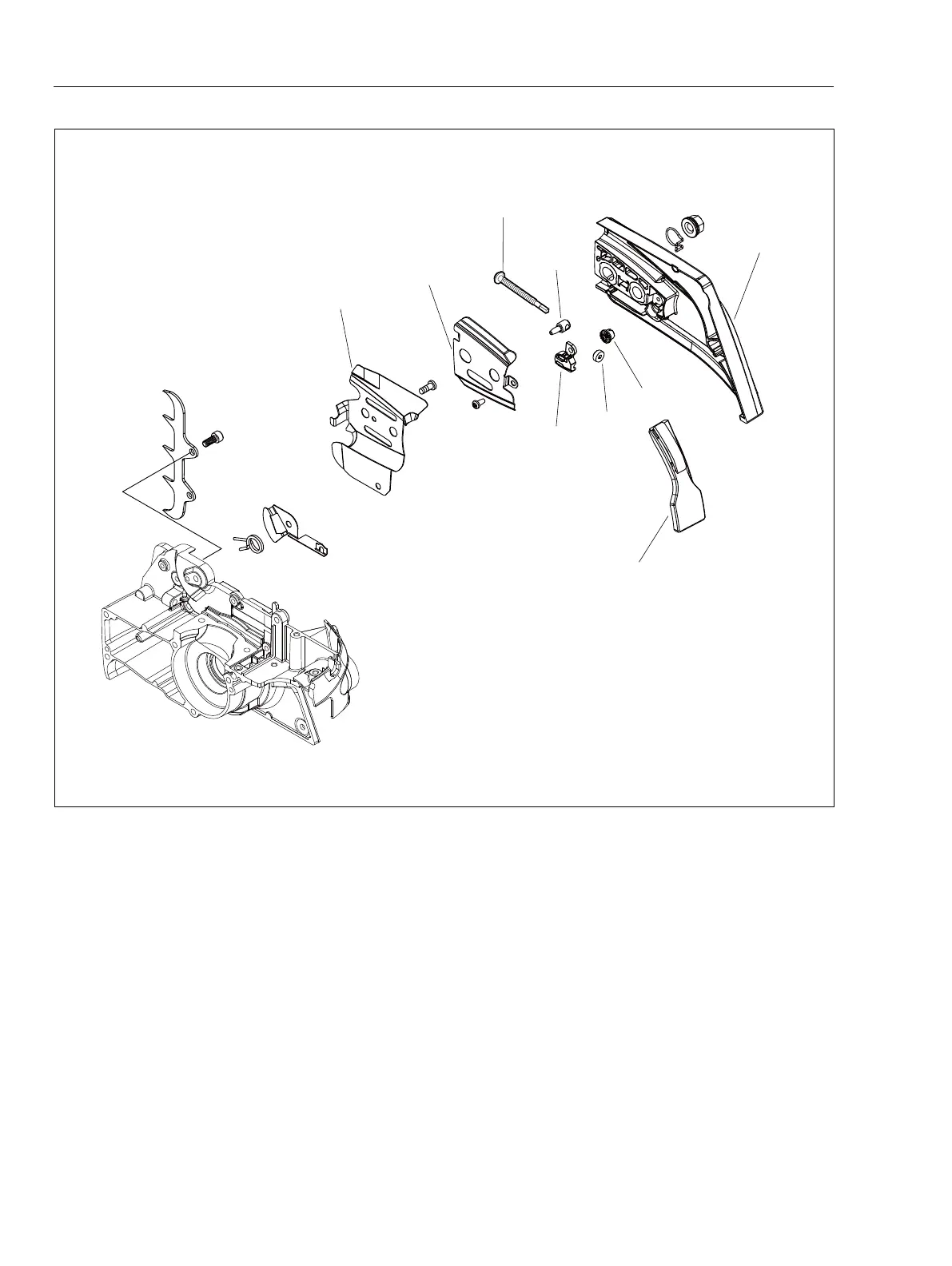

10 GUIDE BAR MOUNTING SYSTEM
( A ) Sprocket guard
( B ) Inner sprocket guide plate
( C ) Outer sprocket guide plate
( D ) Tensioner screw
( E ) Chain tensioner
( F ) Collar
( G ) Bevel gear
( H ) Bevel gear
( J ) Protector
(J)
(D)
(F)
(H)
(G)
