SAW CHAIN LUBRICATION SYSTEM
CS-501SX, CS-501SXH
501sx
45

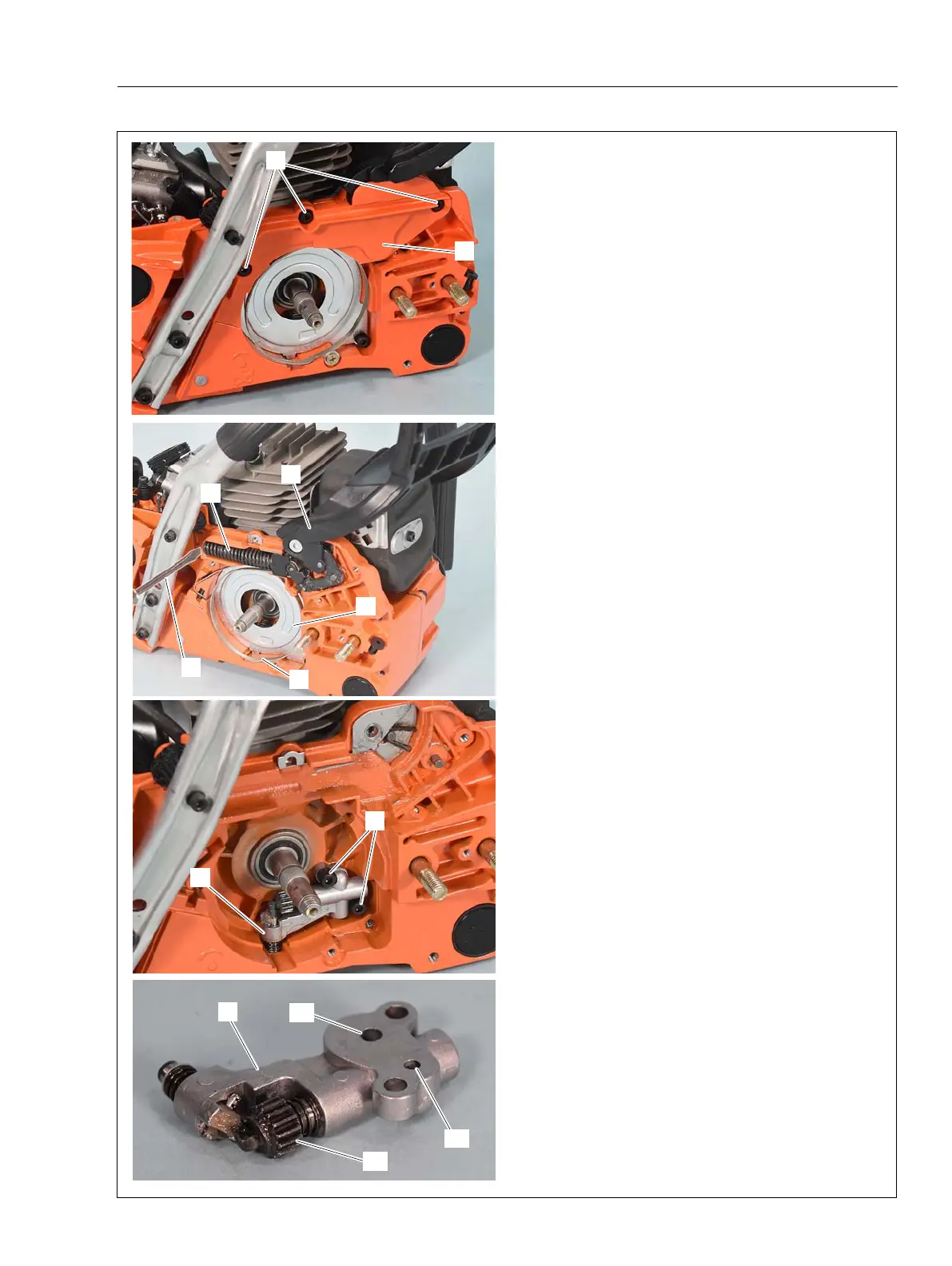

7-2 Inspecting auto-oiler assembly and oil line
1. Remove three bolts (A) and brake cover (B).
2. Remove coil spring (C) using fl at head screw-
driver (D).
3. Remove brake lever (E), coil spring (C), brake
band (F), oiler cover (G) and related parts.
4. Remove two bolts (H) and auto oiler assembly
(J).
5. Inspect auto-oiler assembly (J) for discoloration
or deformation. Inspect gear (j1) for wear, damage
and rotate smoothly. Inspect oil inlet (j2) and outlet
(j3) for clog. Replace as required.
B
A
D
H
J
J
F
E
C
G
j1
j2
j3
