Echo shindaiwa CS-501SX

CHAIN BRAKE SYSTEM
CS-501SX, CS-501SXH
501sx
40
6 CHAIN BRAKE SYSTEM
(A)
(S)
(E)
(S)
(J)
(G)
(M)
(B)
(D)
(C)
(K)
(L)
(N)
(P)
(F)
(H)
(R)

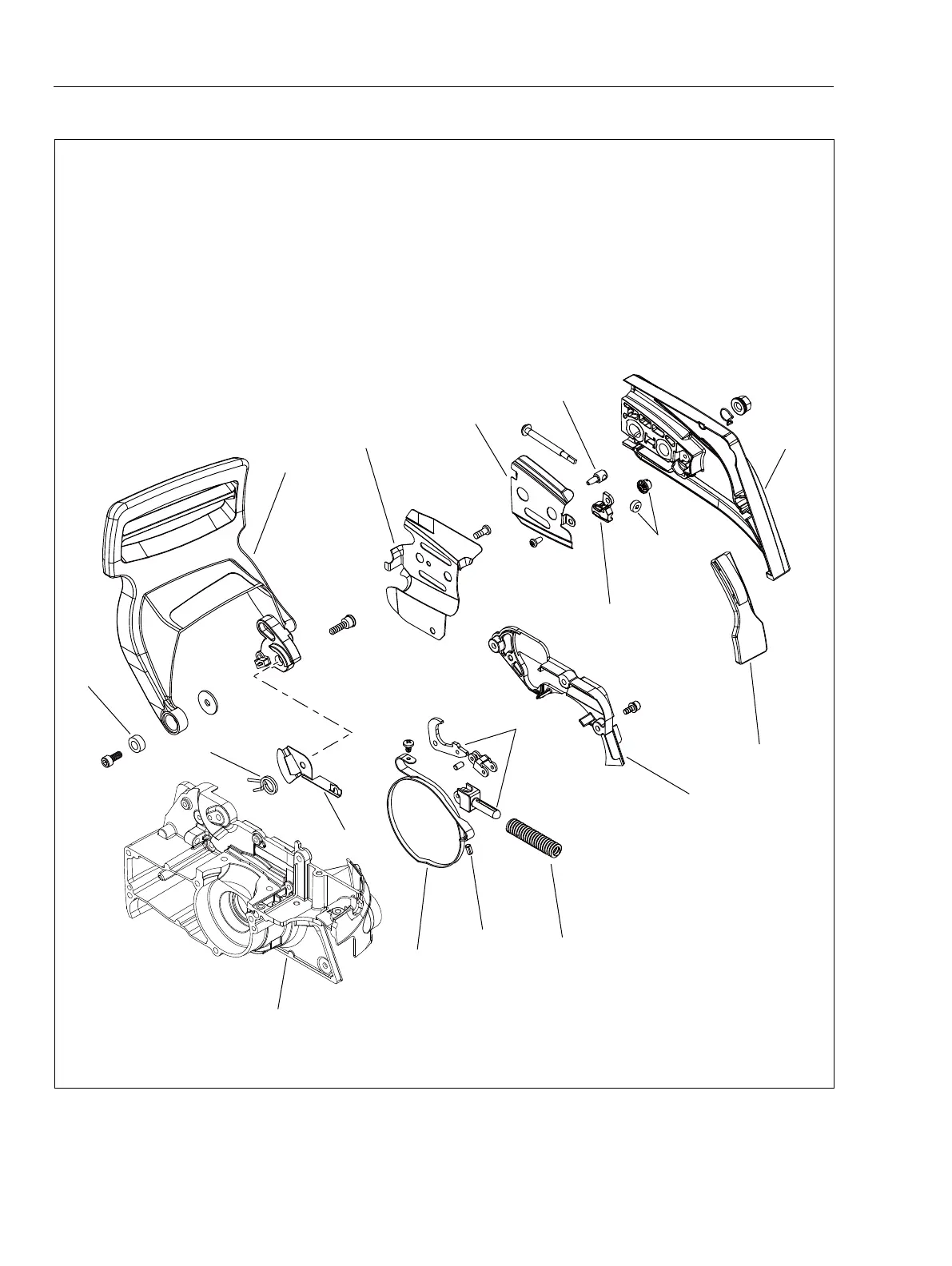

( A ) Brake lever
( B ) Collar
( C ) Torsion spring
( D ) Brake seal plate
( E ) Brake band
( F ) Spring pin
( G ) Coil spring
( H ) Brake connector
( J ) Brake cover
( K ) Sprocket guard plate
( L ) Sprocket guard plate
( M ) Chain tensioner
( N ) Collar
( P ) Bevel gear
( R ) Sprocket guard
( S ) Crankcase
