5-3 Installing clutch assembly (Continued)

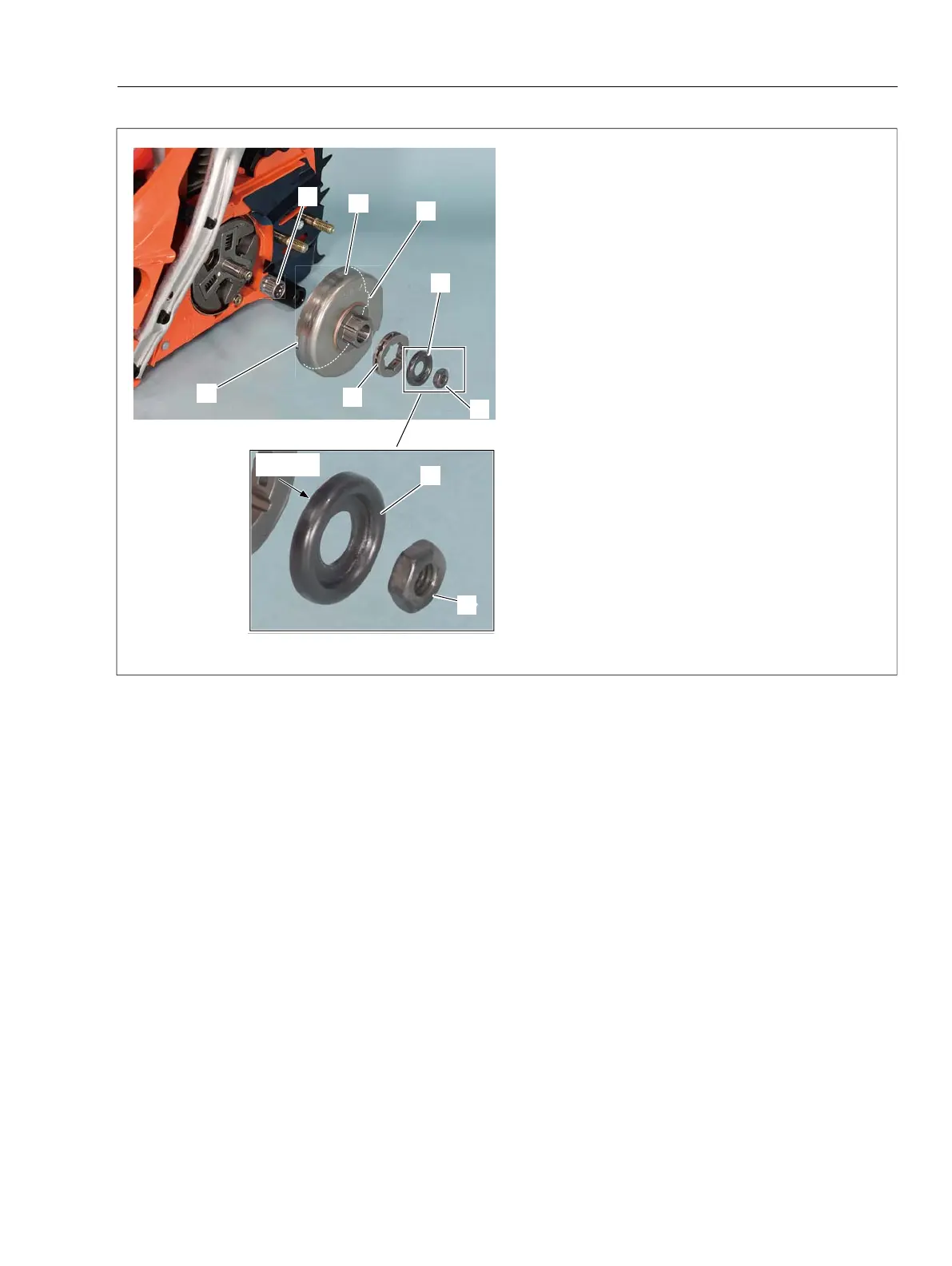

4. Apply lithium-based grease to needle bearing (E).
Install clutch drum (F) and needle bearing (E) on
crankshaft, placing the hands (b) of worm gear (B)
in cutouts (f) of clutch drum.
5. Install sprocket (G). Install circular washer (H),
facing fl at side to sprocket (G).
6. Install nut (J).
7. Remove rope and reinstall all removed parts.
