REAR HANDLE AND CONTROL SYSTEM
CS-501SX, CS-501SXH
501sx
65
9-3-1 Inspecting heated handle (continued)

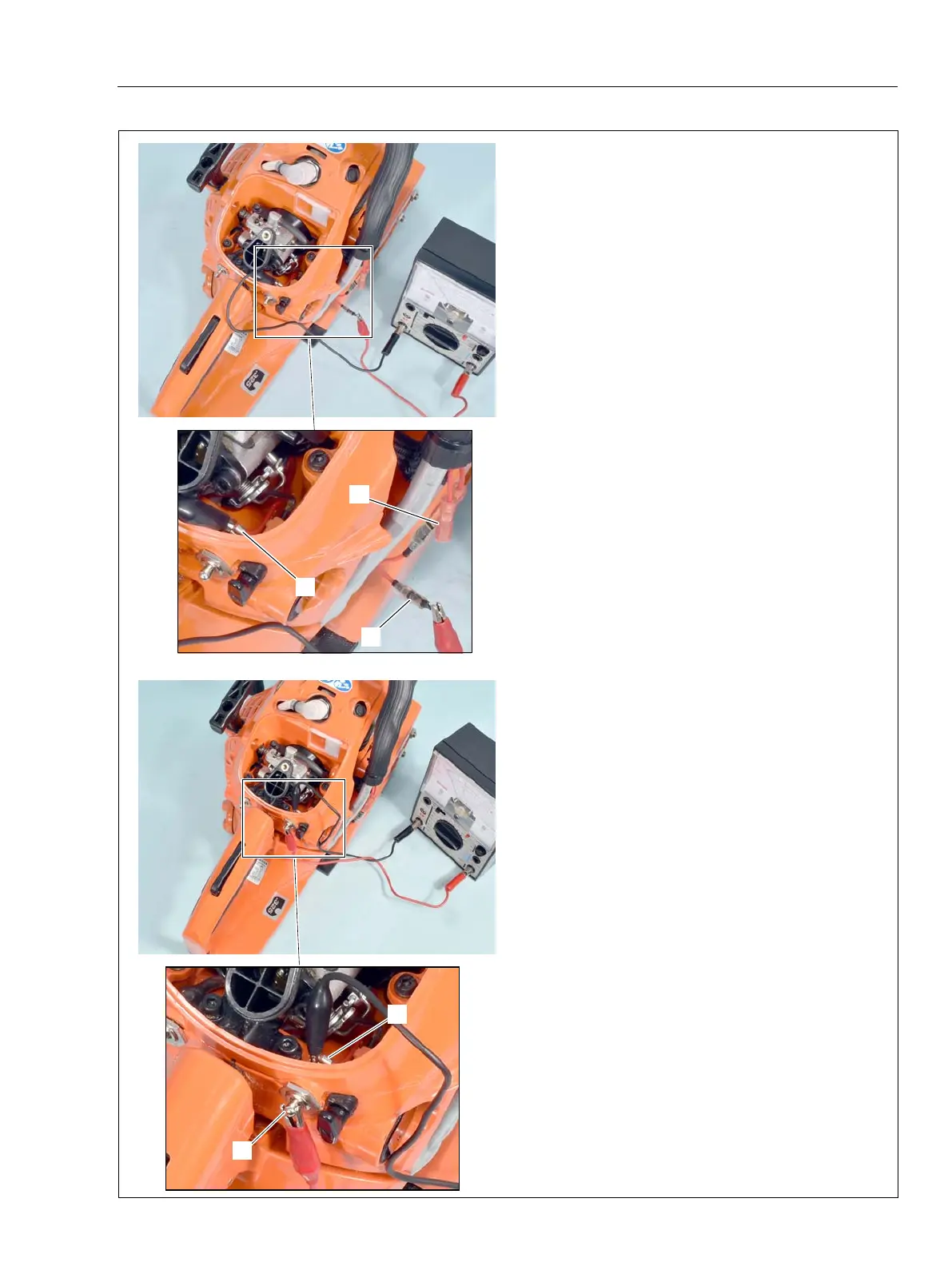

Inspecting rear handle heater
1. Disconnect rear handle heater lead coupler (A).
NOTE:
If it is not clear which is rear handle heater
lead coupler (A), remove carburetor and carburetor
elbow, and check where the lead is connected to.
2. Connect one probe of ohm-meter or multi-meter
to rear handle heater lead (B) as shown.
3. Connect the other probe to heater switch termi-
nal (C) as shown.
4. Tester should show that the circuit is in conduct-
ing state.
5. If rear handle heater is defective, replace with
a new one (Refer to 9-3-3 “Replacing rear handle
heater”).
Inspecting heater switch
1. Connect one probe of ohm-meter or multi-meter
to heater switch terminal (A) as shown.
2. Connect the other probe to heater switch lever (B)
as shown.
3. When heater switch is in “RUN” position, tester
should show that the circuit is in conducting state.
4. When heater switch is in “STOP” position, tester
should indicate infi nite resistance.
5. If heater switch is defective, replace with a new
one (Refer to 9-3-4 “Replacing heater switch”).
A
B
A
B
C
