REAR HANDLE AND CONTROL SYSTEM
CS-501SX, CS-501SXH
501sx
60
9-1 Replacing cushions (continued)

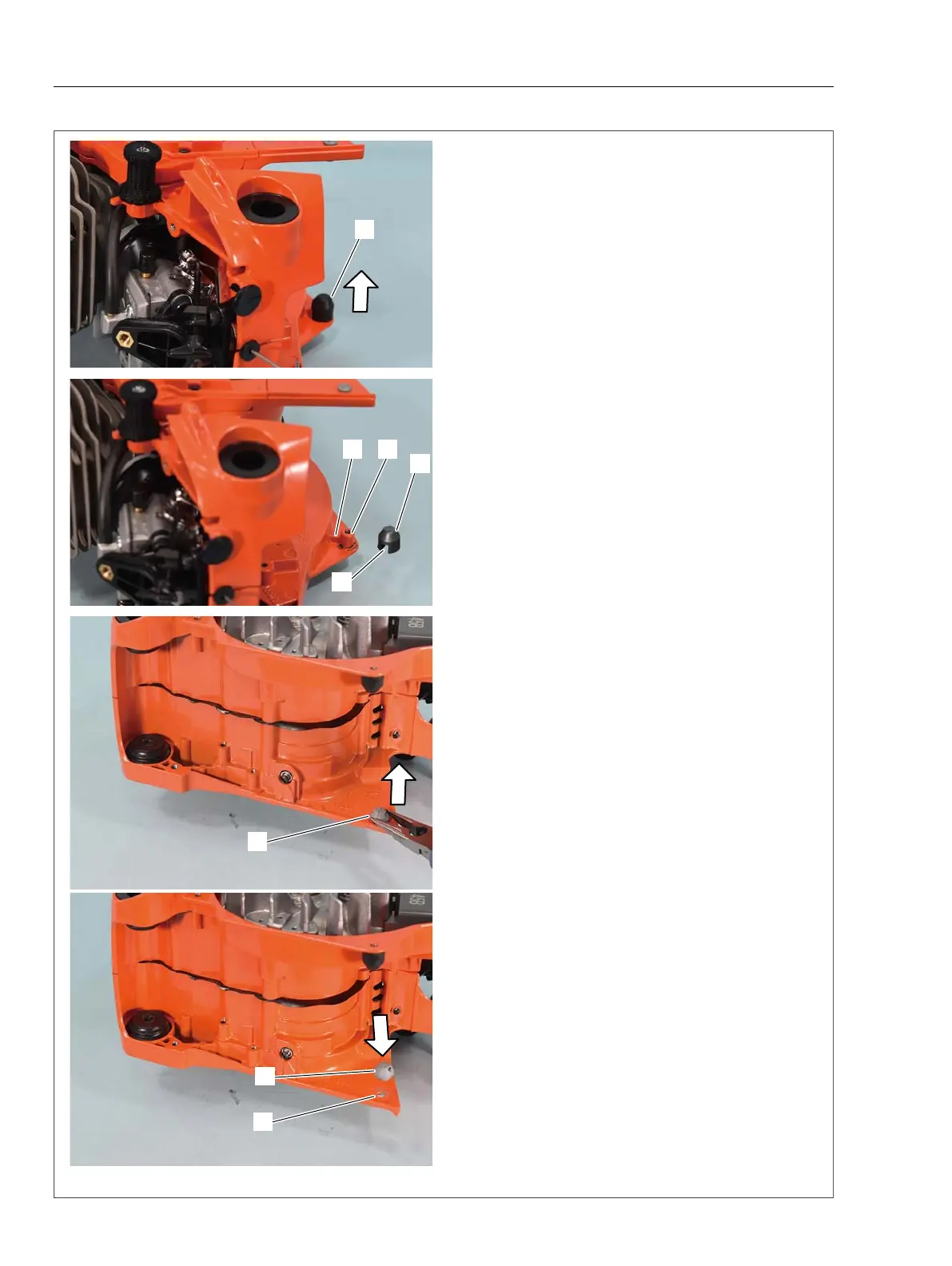

6. Inspect cushions (E) for cracking or wear. If
damaged, replace with new cushions as follows.
7. To remove cushions (E), pull by hand in direc-
tion of arrows.
8. Clean the surrounding of cushion boss (F) if ad-
hesive is struck.
9. Install new cushion (E) mating groove (e) to pro-
jection (f) of the boss (F).
10. Apply adhesive Loctite 422 or equivalent to the
base of cushion (E).
11. Inspect cushions (G) for cracking or wear. If
damaged, replace with new cushions as follows.
12. To remove cushions (G), pull by hand in direc-
tion of arrows.
13. Clean the surrounding of cushion hole (H) if
adhesive is struck.
14. Install new cushion (G) by pushing in direction
of arrows.
15. Apply adhesive Loctite 422 or equivalent to the
base of cushion (G).
16. Reassemble rear handle to the unit. Reassem-
ble all related parts.
E
F
G
f
e
E
H
G
To Next Page
