REAR HANDLE AND CONTROL SYSTEM
CS-501SX, CS-501SXH
501sx
62

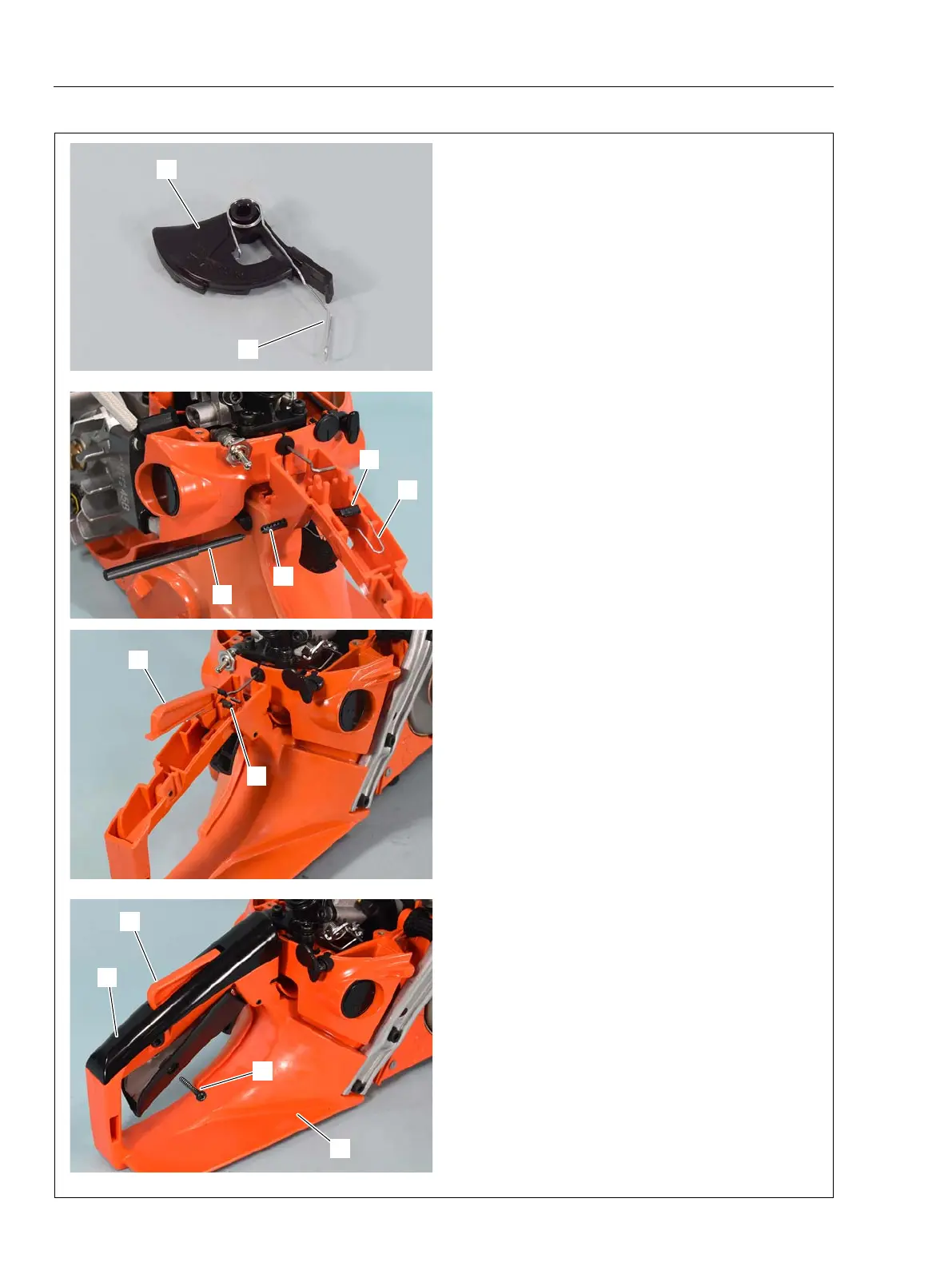

9-2 Replacing throttle trigger (continued)
5. Set torsion spring (H) on throttle trigger (G) as
shown.
6. Install throttle trigger (G) with torsion spring (H)
and insert spring pin (E) as follows.
1) Insert spring pin (E) in the hole of rear handle
so the tip of spring pin does not protrude inside
handle.
2) Align spring pin (E) and the hole of throttle
trigger (G) with torsion spring (H), and insert
spring pin (E) in the hole of throttle trigger (G).
3) Lightly tap in spring pin (E), using spring pin
tool 897724-01361 (F).
7. Install throttle lockout (D) with spring pin (E) as
shown.
8. Install rear handle cover (C) on rear handle (J),
setting torsion spring (H) with throttle lockout (D)
as shown (Refer to “9-3-3 Replacing rear handle
heater”).
9. Tighten screw (A) to secure rear handle cover
(C). Check throttle trigger (G) and throttle lockout
(D) for correct movement.
H
G
F
G
H
E
C
D
A
E
D
J
To Next Page
