REAR HANDLE AND CONTROL SYSTEM
CS-501SX, CS-501SXH
501sx
68

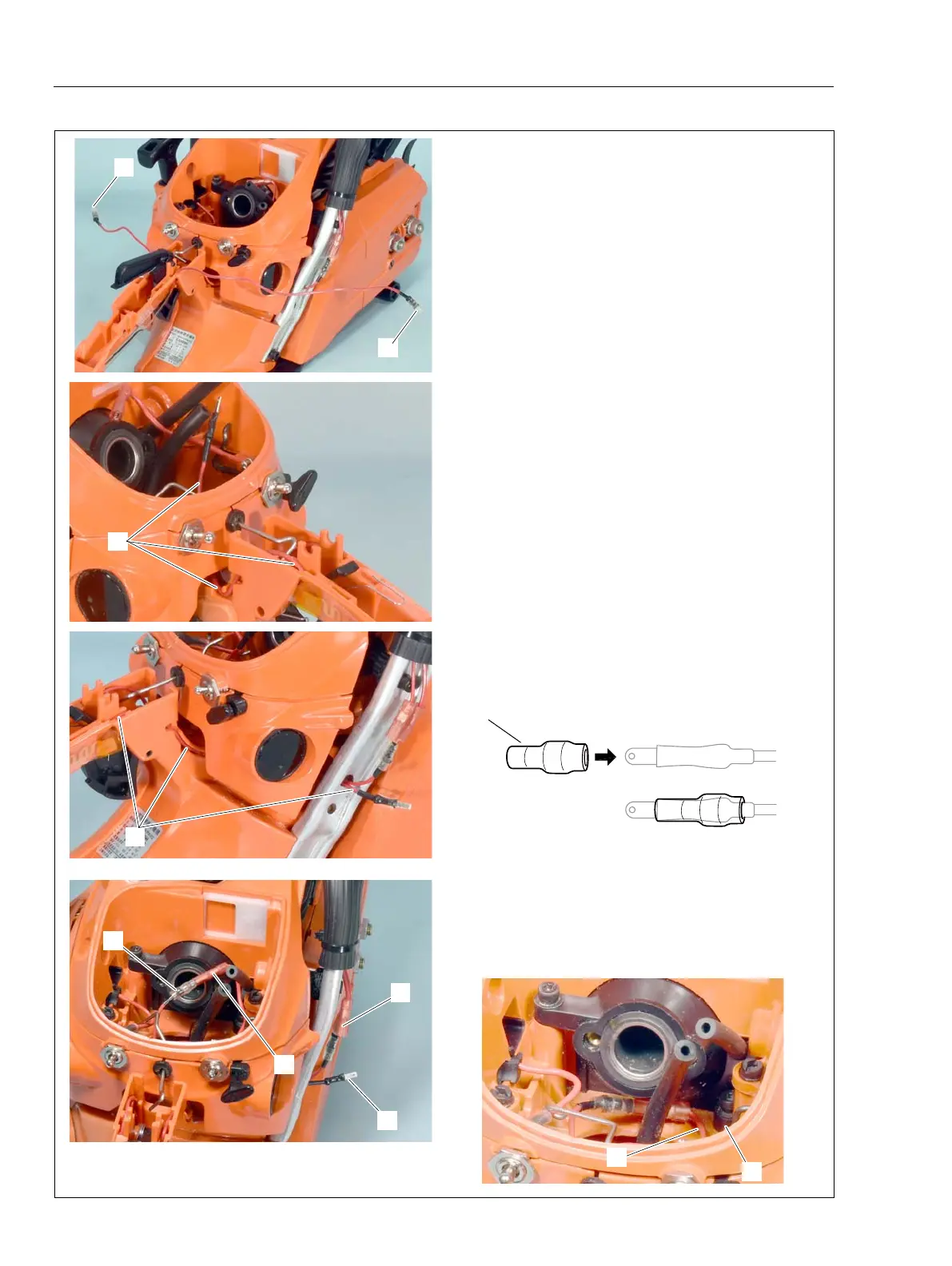

9-3-3 Replacing rear handle heater (continued)
4. Remove boots (J) and + rear handle heater.
5. Install new rear handle heater.
6. Pass the rear handle heater lead (K) as shown.
7. Pass the rear handle heater lead (L) as shown.
8. Reinstall boots (J) to each lead terminal as
shown.
9. Connect rear handle heater lead (K) to heater
switch lead (M) and rear handle heater lead (N) to
coupler (H).
NOTE:
Check if heater switch lead (M) is mounted
without contacting with the side (P).
J
J
K
M
H
N
L
M
P
K
J
