HiVol 3000 User Manual 1.7 Installation
23

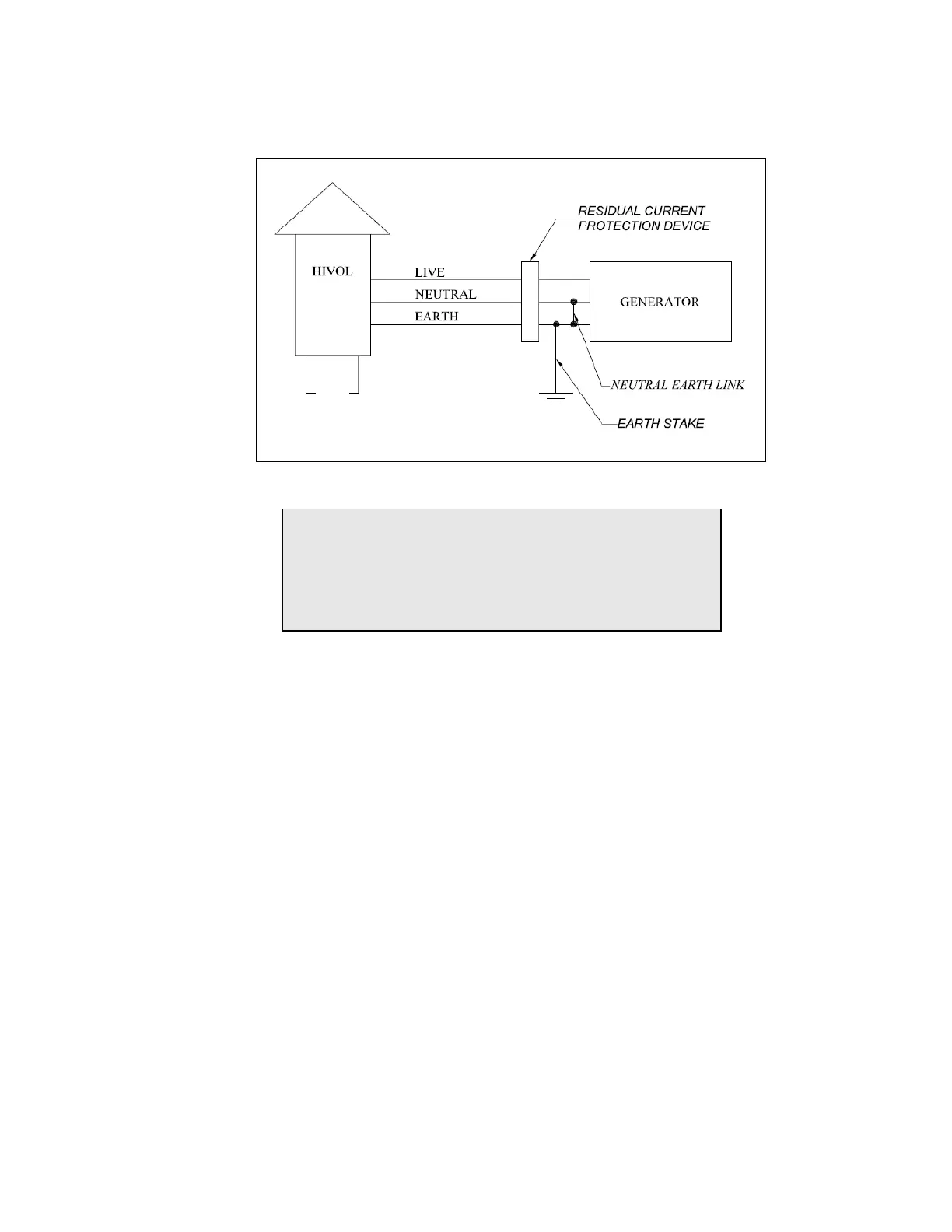

Figure 10 Hivol power connection
Note: The purpose of this drawing is to highlight that the HiVol
3000 should not be operatied for a floating supply. A generator
installation should be performed by a competent electrical
contractor, in accordance with Relevant standards. This drawing
is a recommendation on, Ecotech accepts no responsibility for
any damage or accident as a consequence of this arrangement
of any other power connection arrangement.
The power cord presents safety hazards that should be considered by
the installer. Regular inspections and periodic testing of the cord
may be required to ensure compliance with local safety standards.
There are no circuit breakers fitted inside the HiVol. Motor current
is limited by the internal variable speed drive.
The power connection to the sampler must include the orange
weather-proof cap and this must be screwed into position whenever
the sampler is in the field. The weather-proof cap ensures the
desired water-proof rating is achieved and prevents loosening of the
plug due to vibration. The weather-proof cap is designed to be
inserted into the socket. A wireable 10A socket is supplied for this
purpose.
Attach the HiVol to a power outlet that will not be needed for other
purposes, so that the power supply to the sampler will not be
disturbed.
