rotate freely. The wind vane’s movement has a small amount of friction,
which is helpful in providing steady wind direction measurements.

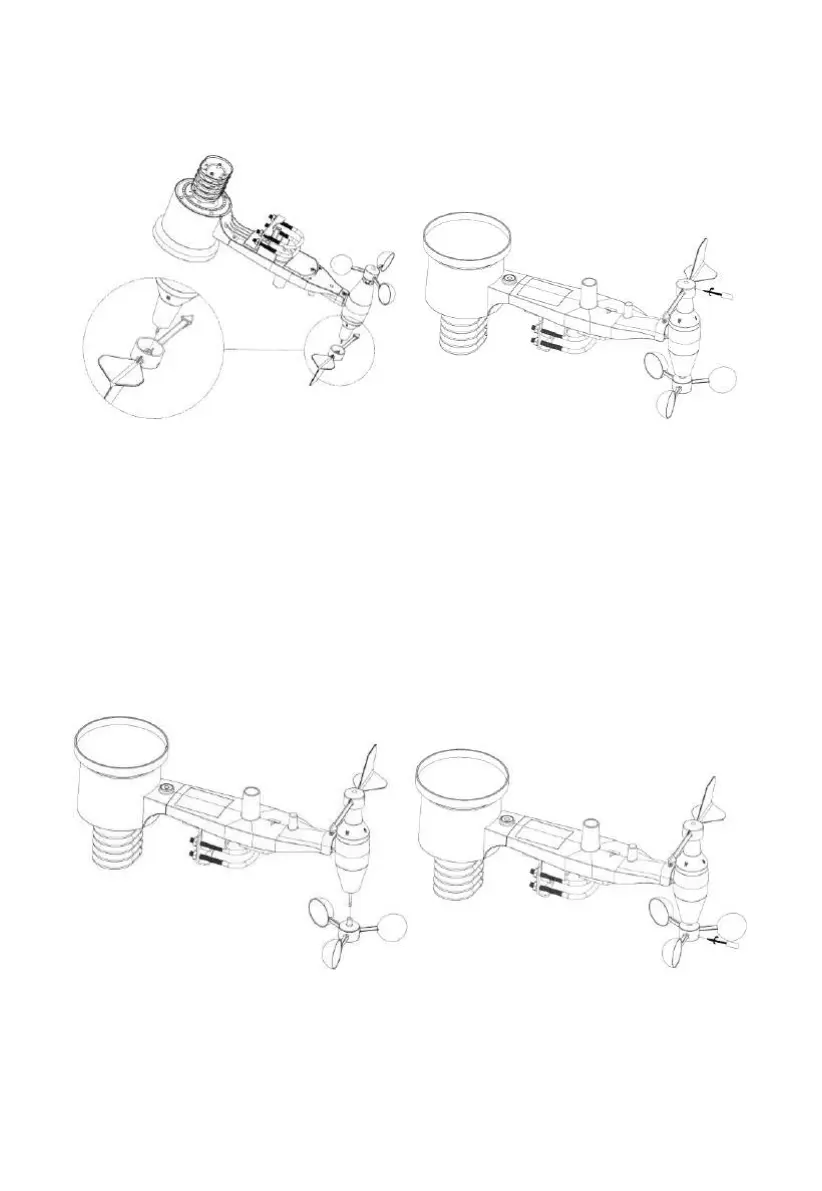

Figure 7: Wind vane installation diagram
4.1.3 Install wind speed cups
Push the wind speed cup assembly onto the shaft on the opposite side of the
wind vane, as shown in Figure 8 on the left side. Tighten the set screw, with a
Philips screwdriver (size PH0), as shown on the right side. Make sure the cup
assembly can rotate freely. There should be no noticeable friction when it is
turning.
Figure 8: Wind speed cup installation diagram
