3 - 6 AG45134 Rev. 3
Step 7. Firmly press the center of the pin bar down to insure that it is
seated properly.

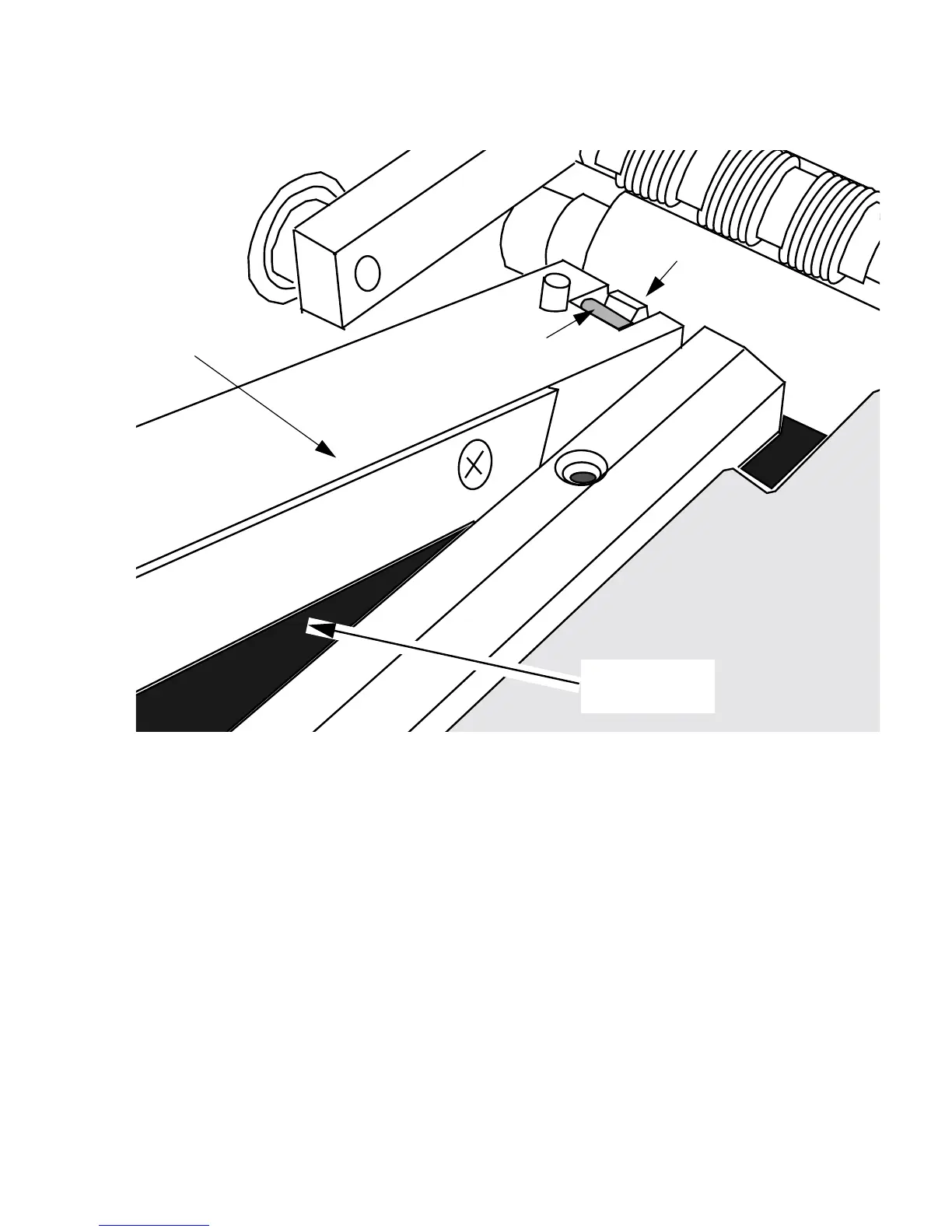

Figure 3-5 Setting the Alignment Pin in the Hook
Removing a Pin Bar
Step 1. Push the pin bar latch forward to disengage the latch.
Step 2. Lift the pin bar up by the latch until the bar is at about a 45 degree
angle.
Step 3. At the front of the pin bar, disengage the alignment pin from the
hook in the channel.
Step 4. Carefully remove the pin bar and store it in a safe place.
HOOK
ALIGNMENT PIN
BAR
PIN
CHANNEL
