AG45134 Rev. 3 3 - 5

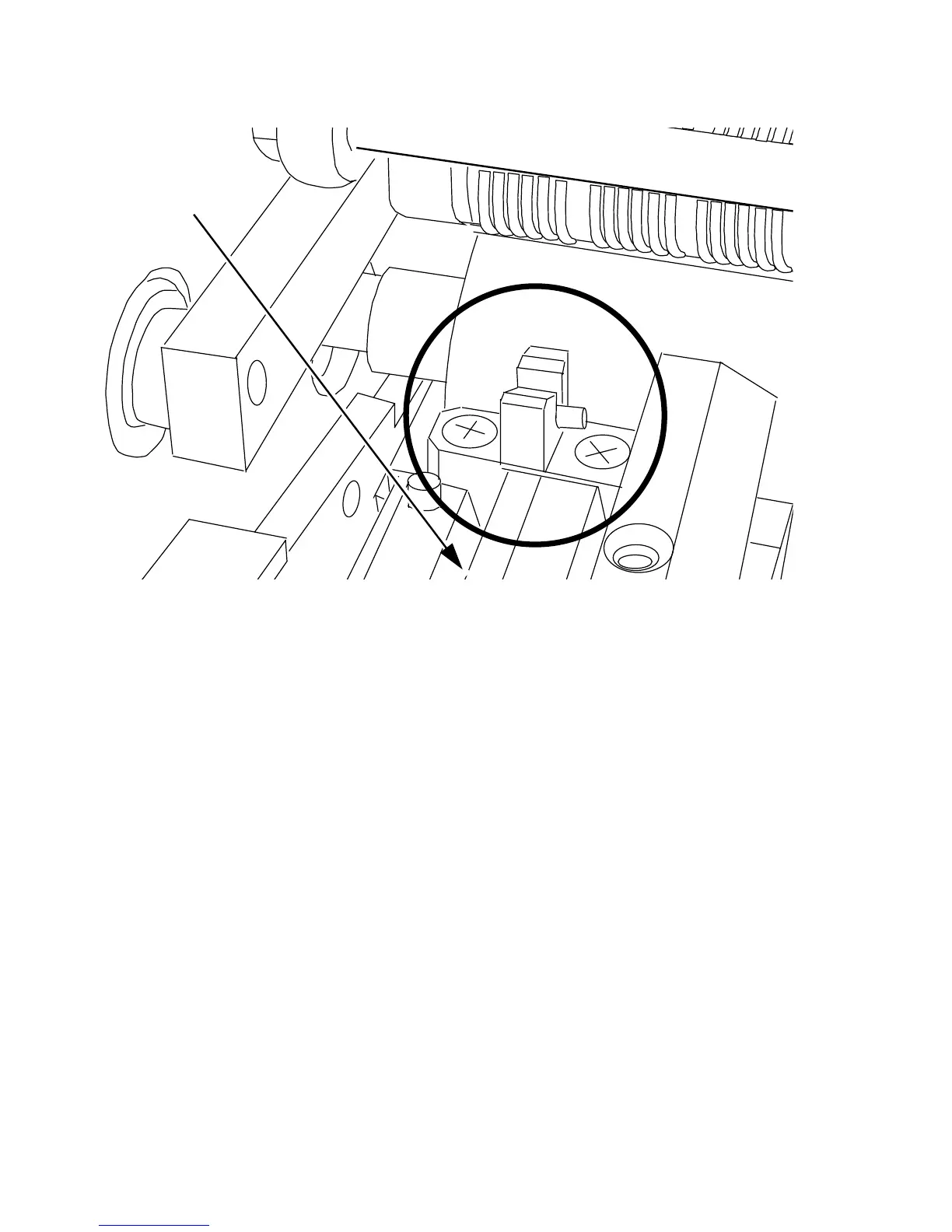

Figure 3-4 Alignment Pin Hook
Step 4. Position the pin bar over the channel with the alignment-pin end
at the front of the channel and the latch at the back of the chan-
nel.
Step 5. Holding the pin bar at a 45 degree angle, snap the pin bar align-
ment pin into the hook, as shown in Figure 3-5.
Step 6. Press down on the alignment pin so that it stays in the hook; then,
lower the other end the pin bar into the channel until the latch
snaps and locks the bar in place.
HOOK
FRONT OF
CHANNEL
