4 - 2 AG45134 Rev. 3

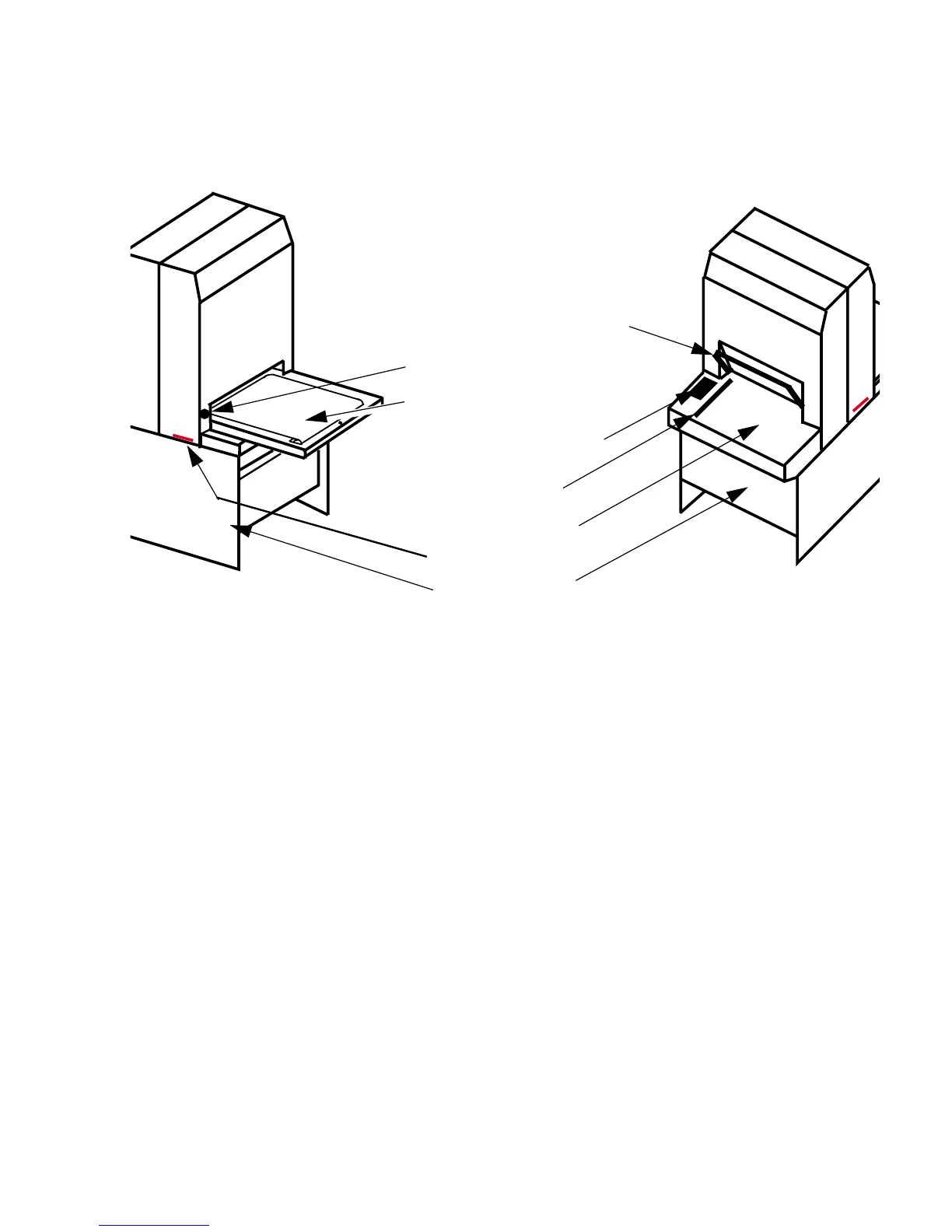

Figure 4-1 System Details
Cleaning the System
Clean the outside of the system and the pin bar with any mild
detergent in clean water using a soft, cotton cloth. Don’t use
abrasive cleansers or chemical cleansers.
Cleaning the Fan Filters
Two filtered fans run at all times to maintain an air flow inside the
machine. Both fans use a 3.6” x 3.6” aluminum filter like the one
shown in the next figure. (ECRM P/N FF0087).
FRONT VIEW
POWER SWITCH
CONTROL PANEL
PINCH ROLLER BAR
MEDIA TRANSPORT
REAR VIEW
INPUT TRAY
FAN FILTER
PEDESTAL
PIN BAR
