Hardware Installation
2.4.2 Jumper Settings for Selecting the PS/2 Keyboard/
Mouse Power

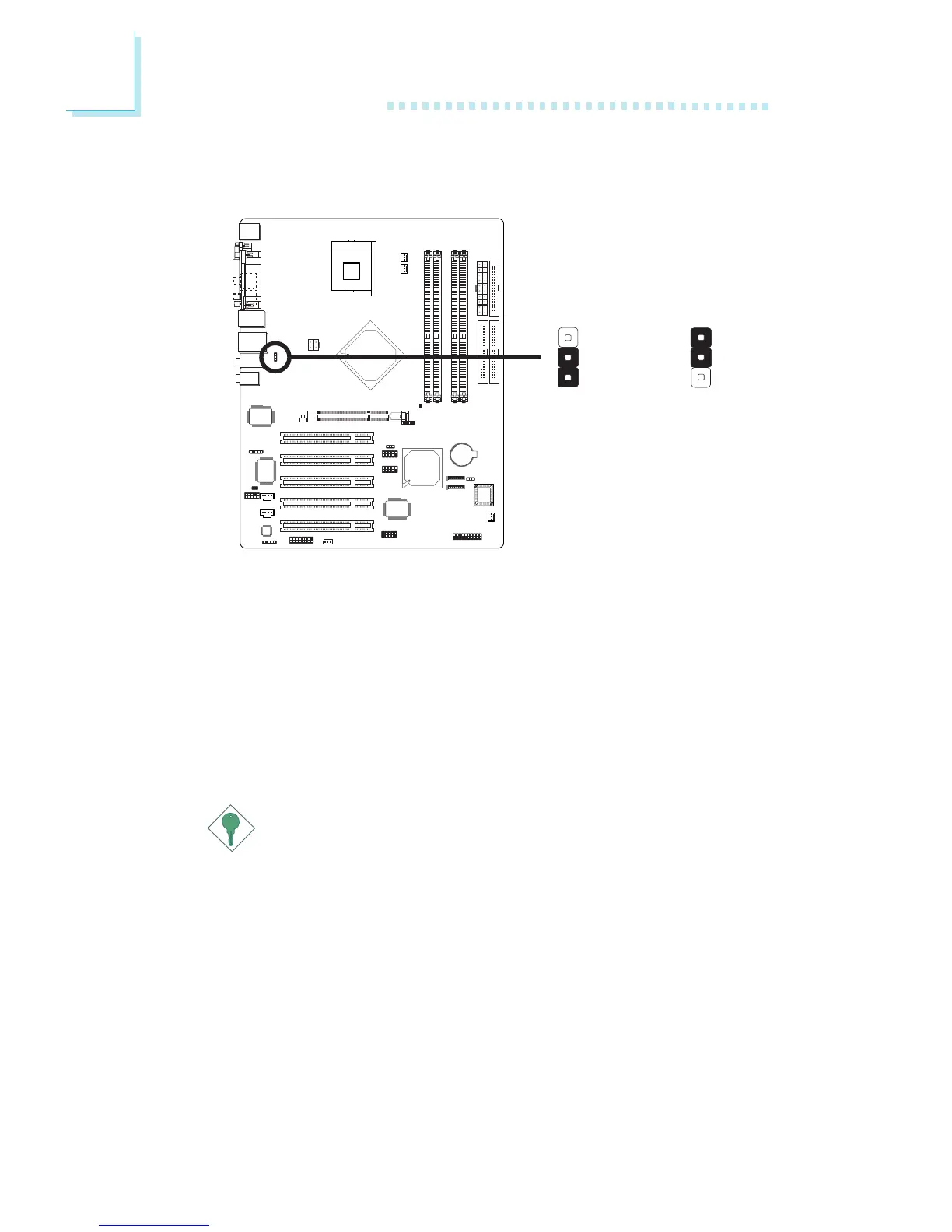

This jumper is used to select the power of the PS/2 keyboard
and/or PS/2 mouse ports. Selecting 5VSB will allow you to use
the Wake-On-PS/2 Keyboard/Mouse function.
BIOS Setting:
“Keyboard/Mouse Power On” in the Power Management Setup
submenu of the BIOS must be set accordingly. Refer to chapter 3
for more information.
Important:
The 5VSB power source of your power supply must support
≥
720mA.
JP1
3
1
2
3
1
2
2-3 On: 5VSB
1-2 On: VCC
(default)
