58
2
Hardware Installation

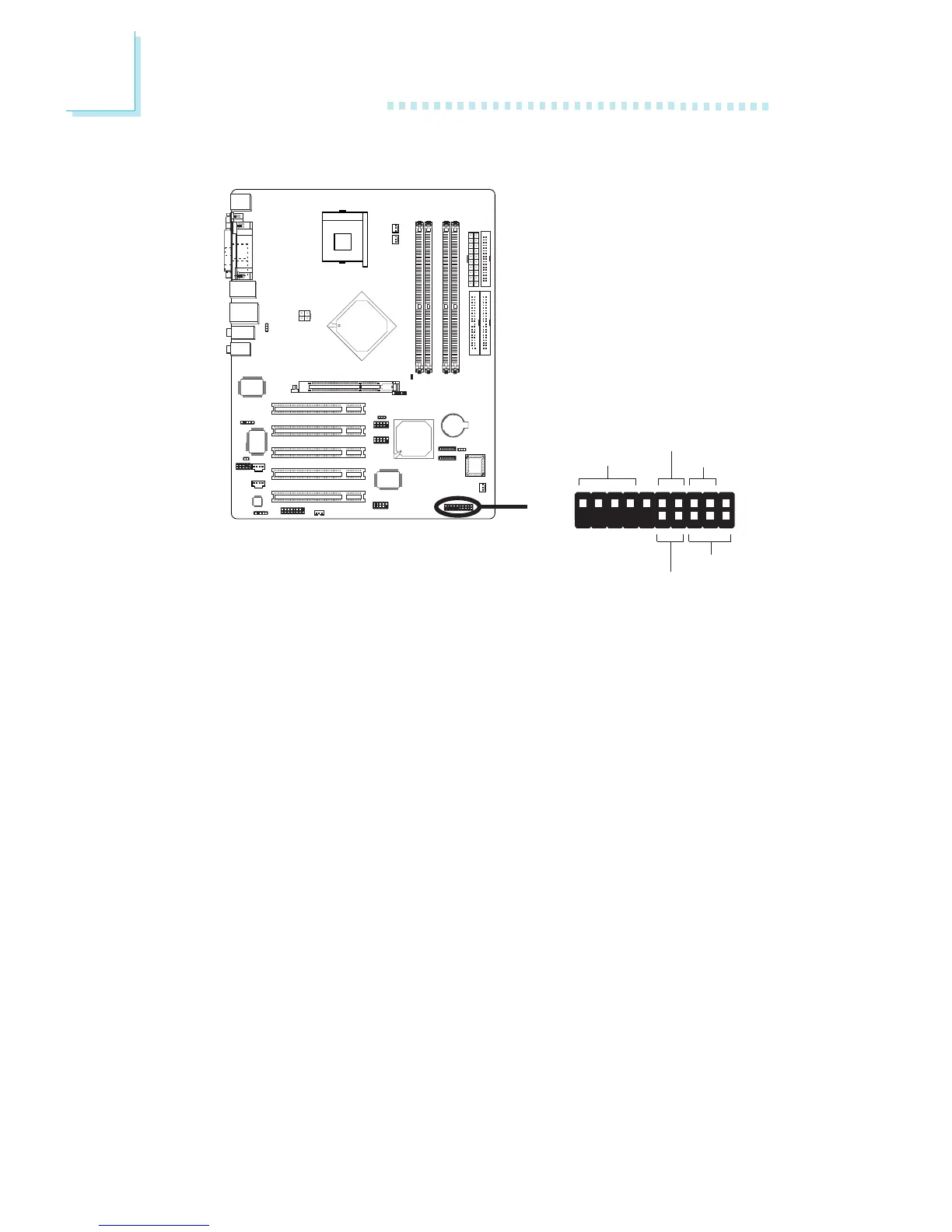

2.6.13 Front Panel Connectors
HD-LED: Primary/Secondary IDE LED
This LED will light when the hard drive is being accessed.
RESET: Reset Switch
This switch allows you to reboot without having to power off
the system thus prolonging the life of the power supply or sys-
tem.
SPEAKER: Speaker Connector
This connects to the speaker installed in the system chassis.
ATX-SW: ATX Power Switch
Depending on the setting in the BIOS setup, this switch is a “dual
function power button” that will allow your system to enter the
Soft-Off or Suspend mode. Refer to “Soft-Off By PWR-BTTN” in
the Power Management Setup (Chapter 3).
X
J15
1
2
19
20
HD-LED
RESET
SPEAKER
PWR-LED
ATX-SW
To Next Page
