ECS 865PE-A User Manual

48
2
Hardware Installation

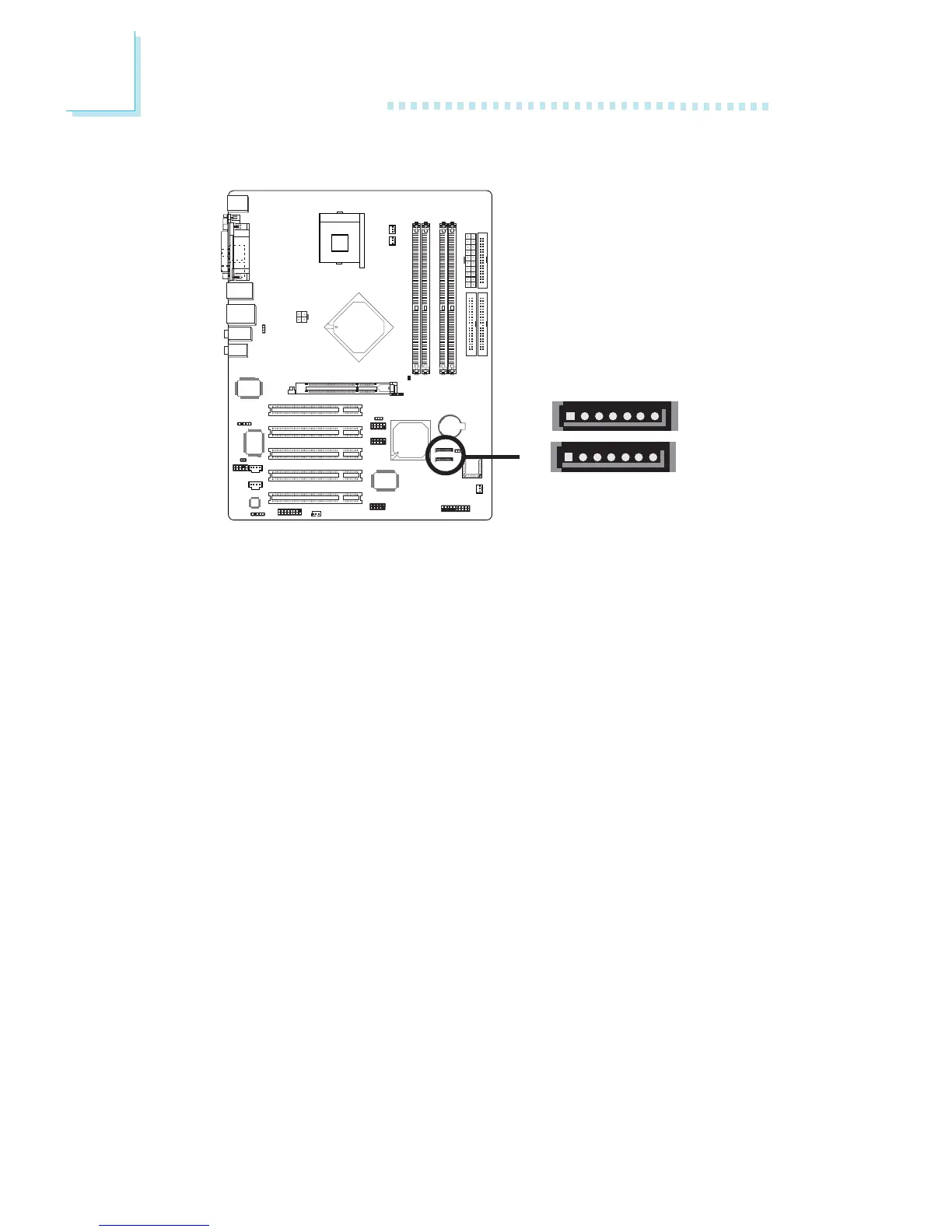

2.6.4 Serial ATA Connectors
SATA 2
SATA 1
17
GND
TXP
TXN
GND
RXN
RXP
GND
The system board is equipped with 2 SATA connectors at loca-
tions J16 (SATA 2) and J17 (SATA 1) for connecting serial ATA
devices. Connect one end of the SATA cable to a SATA connec-
tor and the other end to your serial ATA device.
BIOS Setting
Configure these ports in the Integrated Peripherals submenu
(“OnChip IDE Device” field) of the BIOS. Refer to chapter 3 for
more information.
