52
2
Hardware Installation

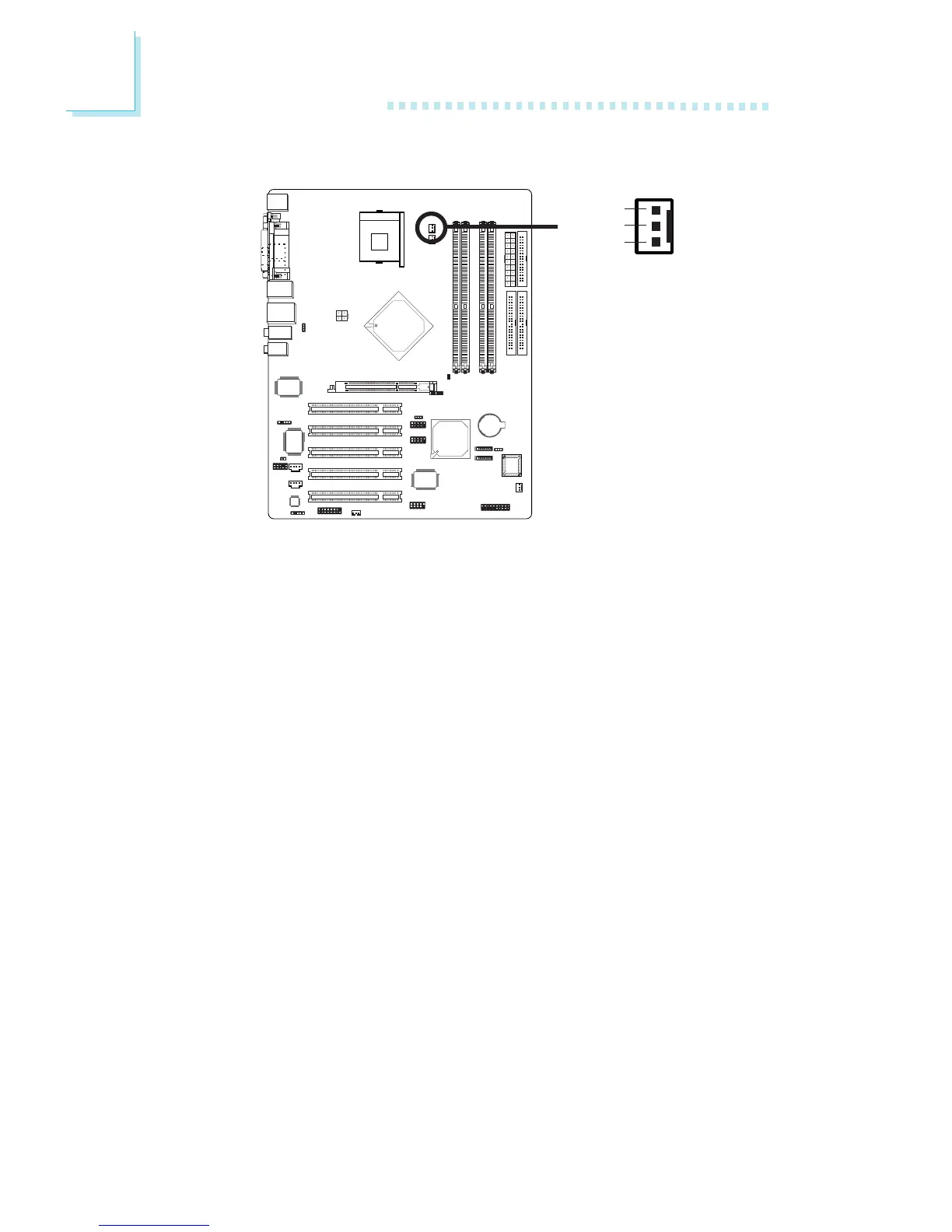

2.6.7 CPU Fan Connector
The CPU must be kept cool by using a fan with heatsink. Con-
nect the CPU fan to the 3-pin fan connector at location J13 of
the system board.
The system is capable of monitoring the speed
of the CPU fan.
BIOS Setting
The
“PC Health Status”
submenu of the BIOS will display the
cur
rent speed of the CPU fan.
Refer to chapter 3 f
or more infor
-
mation.
X
1
3
Ground
Po
w
e
r
Sense
51
53
