Hardware Installation
2.6.6 IrDA Connector

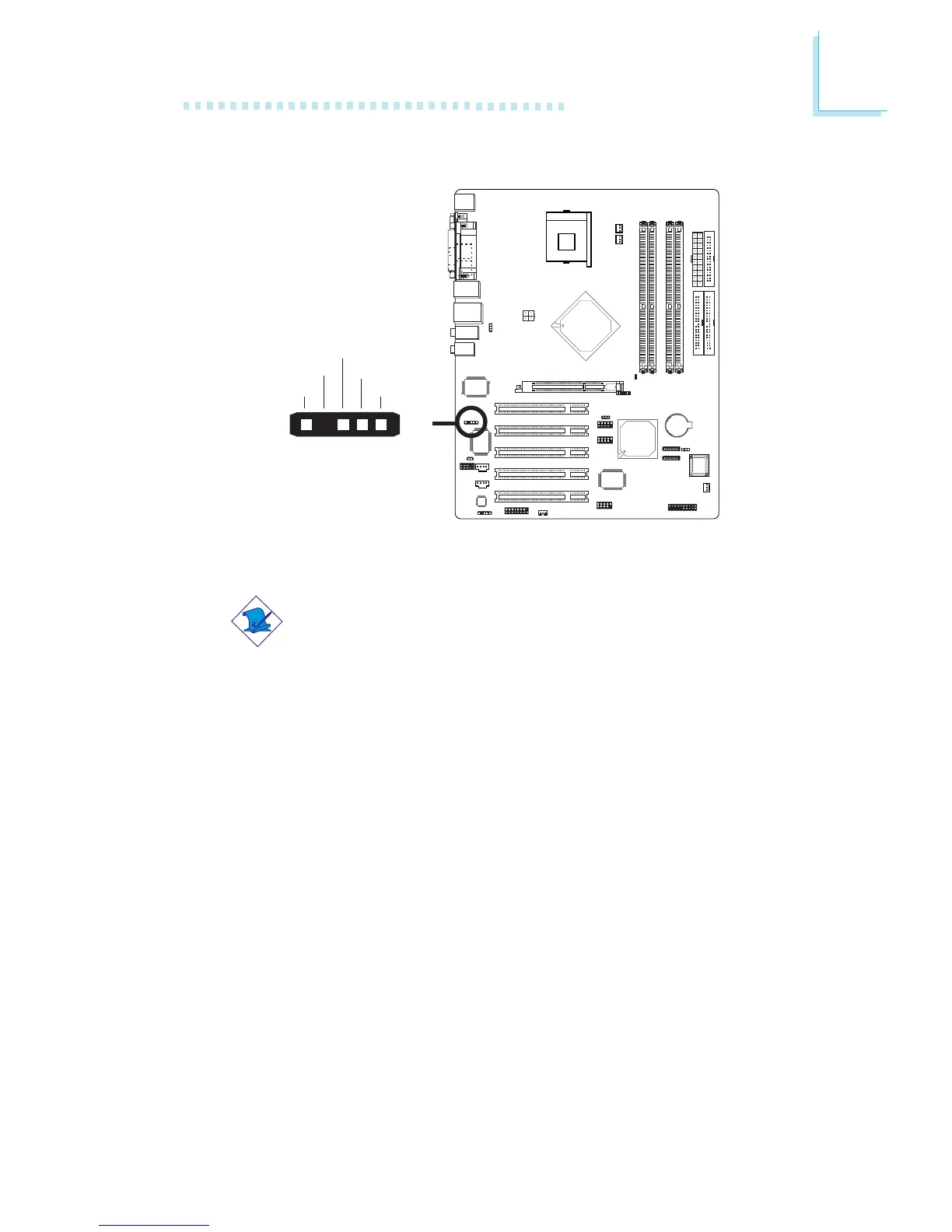

Connect your IrDA cable to connector J2 on the system board.
Note:
The sequence of the pin functions on some IrDA cable may be
reversed from the pin function defined on the system board.
Make sure to connect the cable to the IrDA connector according
to their pin functions.
BIOS Setting
Configure your IrDA device in the Integrated Peripherals
submenu (“Super IO Device” section) of the BIOS.
Driver Installation
You may need to install the proper drivers in your operating
system to use the IrDA function. Refer to your operating system’s
manual or documentation for more information.
