33
2
Hardware Installation

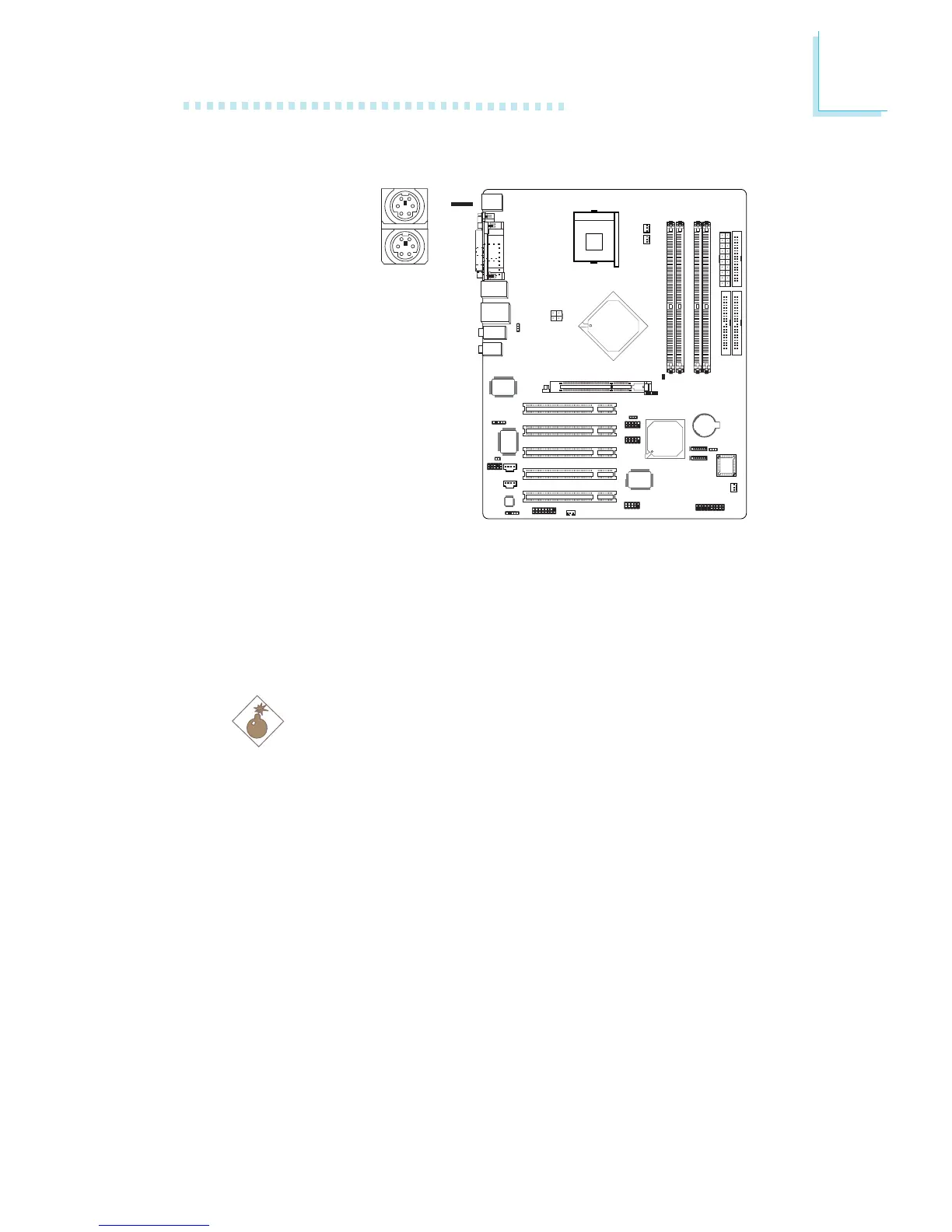

2.5.1 PS/2 Mouse and PS/2 Keyboard Ports
The system board is equipped with an onboard PS/2 mouse
(Green) and PS/2 keyboard (Purple) ports - both at location
CN1 of the system board. The PS/2 mouse port uses IRQ12. If a
mouse is not connected to this port, the system will reserve
IRQ12 for other expansion cards.
Warning:
Make sure to turn off your computer prior to connecting or
disconnecting a mouse or keyboard. Failure to do so may dam-
age the system board.
Wake-On-PS/2 Keyboard/Mouse
The Wake-On-PS/2 Keyboard/Mouse function allows you to use
the PS/2 keyboard or PS/2 mouse to power-on the system. To
use this function:
• Jumper Setting:
JP1 must be set to “2-3 On: 5VSB”. Refer to “Jumper Settings
for Selecting the PS/2 Keyboard/Mouse Power” in this chapter
for more information.
PS/2 Mouse
PS/2 Keyboard
W
.
.
.
.
.
.
.
.
To Next Page
