EDAN INSTRUMENTS CADENCE II User Manual

Cadence II Fetal Monitor Service Manual
－ 24 －

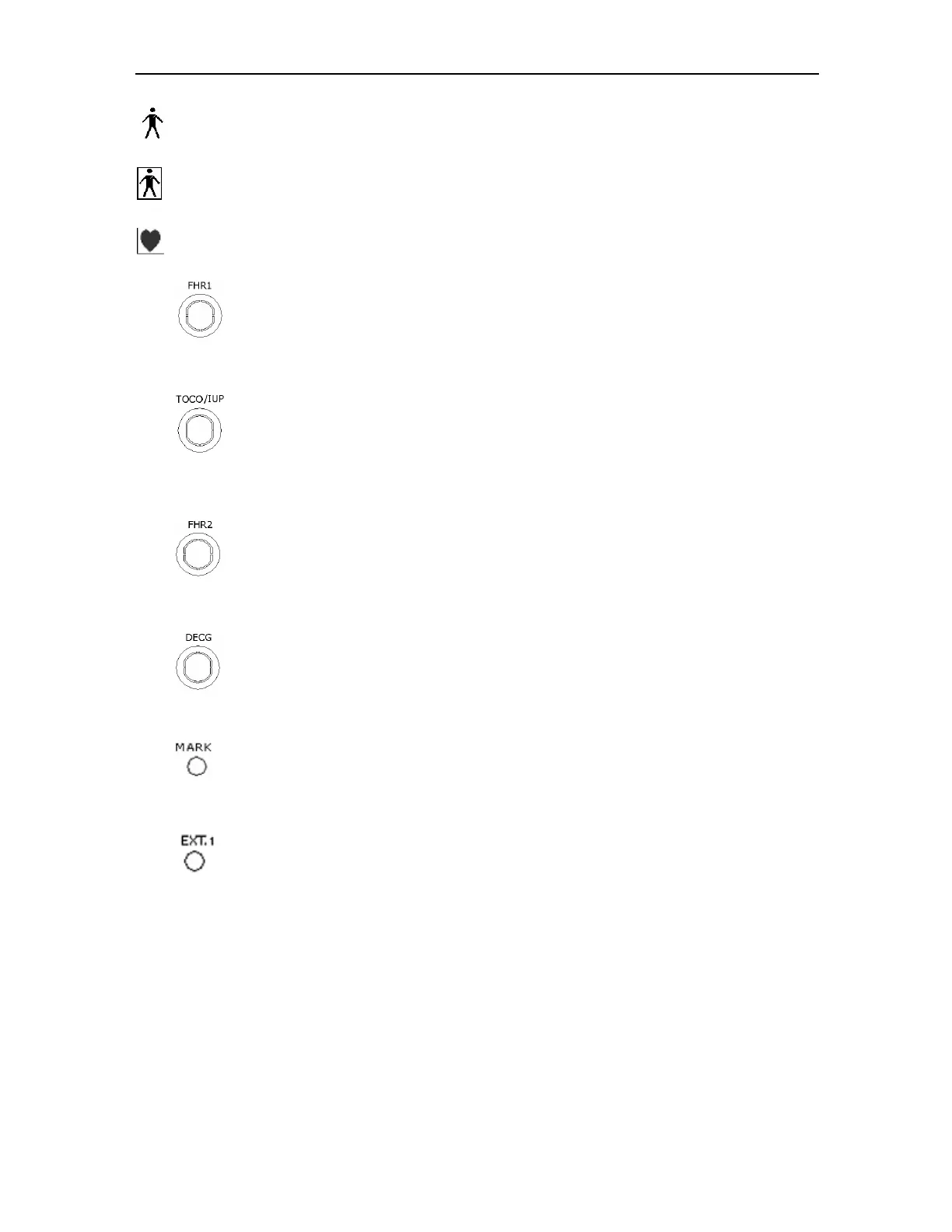

: Type B protection.
: Type BF protection.
: Type CF protection.
Socket for Channel 1 Ultrasound Transducer (for connection with
ultrasound transducer, Protection Category B)
TOCO/IUP Socket (TOCO input socket-for connection with
external contractions (TOCO) transducer, Protection Category B/
IUP input socket, for connection with intrauterine pressure
connector, Protection Category BF).
Socket for Channel 2 Ultrasound Transducer (for connection with
ultrasound transducer, Protection Category B)
Socket for DECG Cable (for connection with fetal ECG cable,
Protection Category CF)
Socket for Remote Marker (for connection with the marker,
Protection Category B)
EXT.1, Socket for Marking （for connection with the fetal stimulator,
Protection Category B）
Note: Please pay attention to the direction when connecting transducer(s), and
connector(s) to main.
Turn the power switch ON, you can hear the short sound of “Do”, and see that
the power on LED indicator on the right side of the front panel is lit (see Figure
2-3 for the position of Power ON indicator). The numeral LED will flash in red
color and green color to test it. At the same time, the system will print a test
baseline.
