Cadence II Fetal Monitor Service Manual
－ 33 －

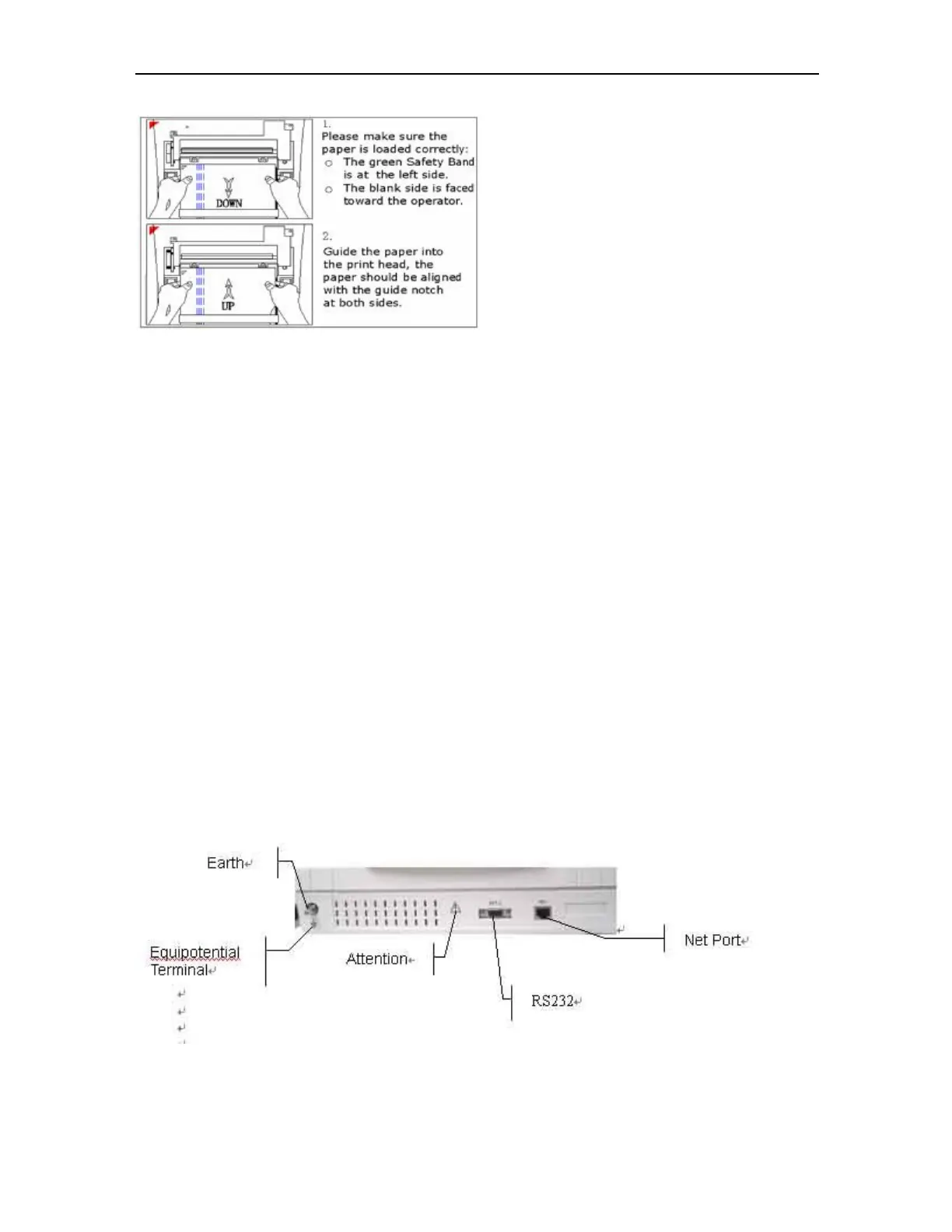

Figure 2-10 Diagram of feeding paper correctly
Note: Be careful when inserting paper. Avoid damaging the thermosensitive print head.
Unless inserting paper or shooting troubles, do not leave the recorder door open.
Removing Paper Jam
When the recorder functions or sounds improperly, open the recorder door to check for
a paper jam. Removing the paper jam in the following way:
Z Cut the record paper from the paper notch edge.
Z Open the door of recorder, and revolve the left gear of the recorder.
Z Pull the paper from below.
2.1.6 Networking Function
Connect RS-485/232 socket of the monitor (see Figure 2-11) to network cable, the data
will be transmitted automatically. Refer to MFM-CNS Obstetrical Central Monitoring
System (Carevista) User Manual for details.
Figure 2-11 CADENCE II Fetal Monitor rear panel
