3.3 Installing Fetal monitor Board

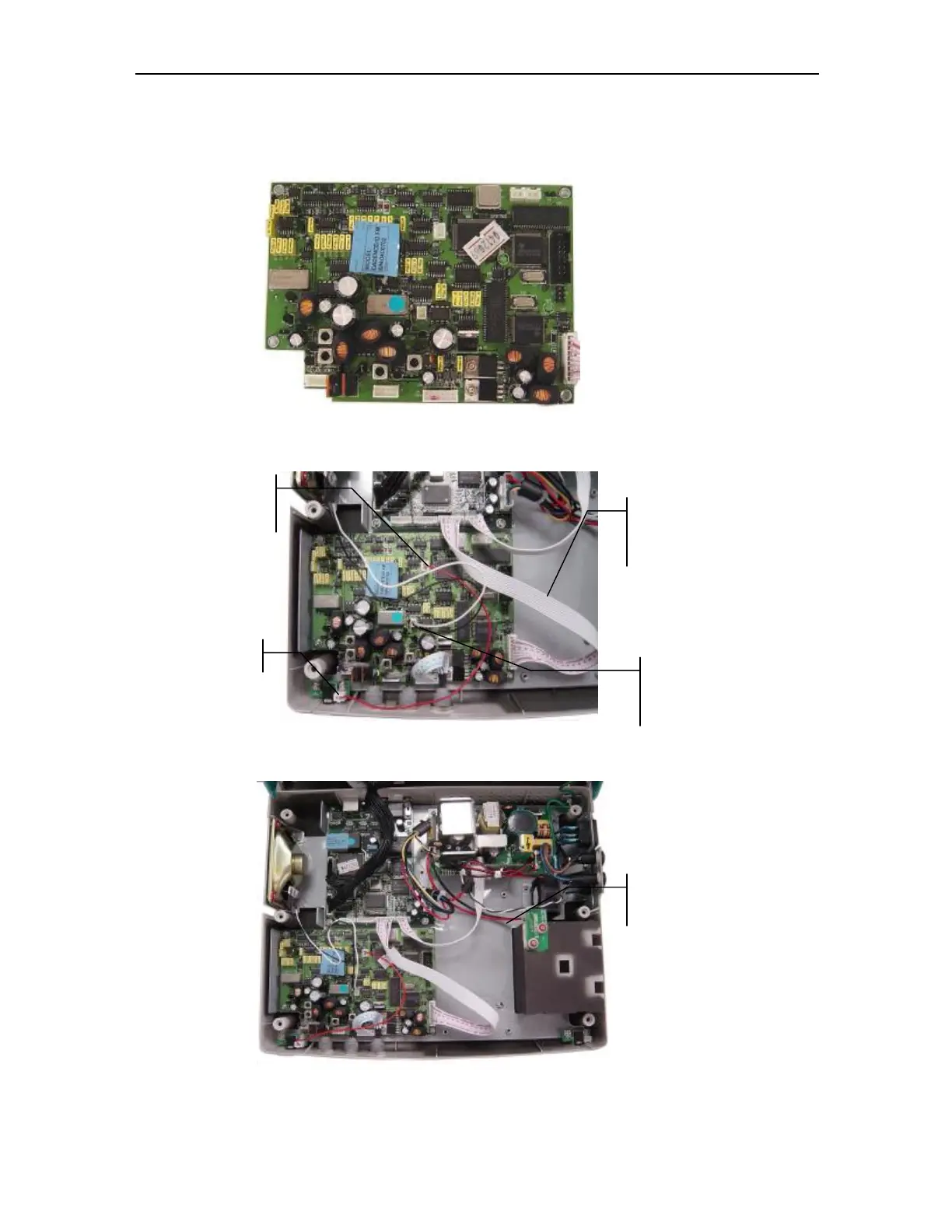

Figure 3-7 the fetal monitor board
Figure 3-8 fixup the fetal monitor board
Figure 3-9 the back panel with the functional board
NOTE: The power wire connect with the battery via battery bd.
The wire connecting the fetal
monitor
board with the main
board
The socket connecting the
soundspeaker with the fetal
monitor board
The socket connecting the
marker with
fetal monitor
board
The power wire connecting with
the battery
The wire of the marker
