Figure 2-3 Position of power on indicator
2.1.3 Control Panel
There are several keystrokes with different functions on the front panel of the monitor.

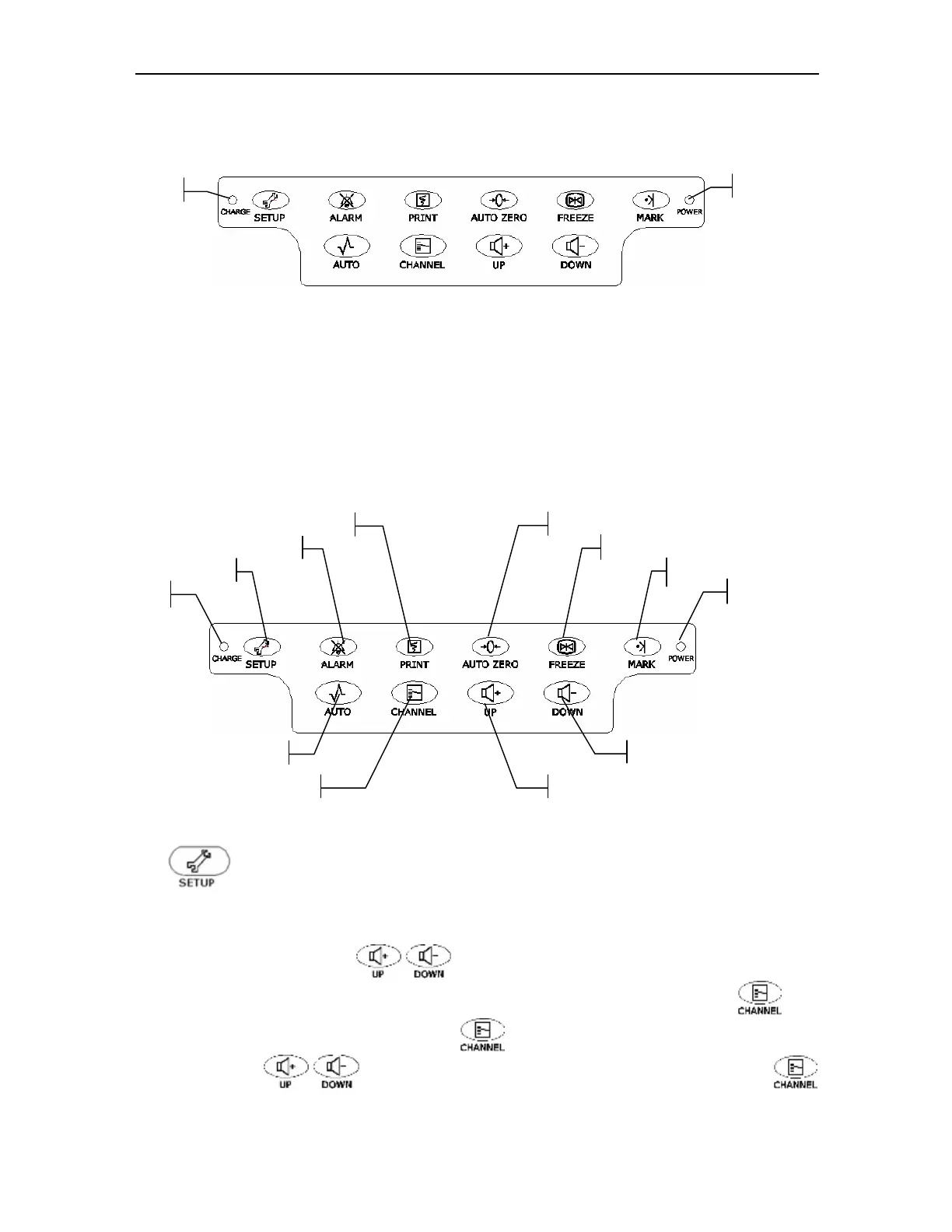

The diagram is showed as Figure 2-5, and their primary functions are as follows:
Figure 2-5 keystrokes
(1)
Function: Set menu item
Press this key to enter the menu interface. To move cursor among the menu items up
and down by pressing the / key. When the cursor is moved to the menu
item to be executed/ revised, this item will be encircled by a pane. Press the key
to execute relevant function or press the key, and this item will display reversed,
then press the / key to revise the relevant content, and press the
key to confirm.
Press this key again to enter the next menu page, till return to the main interface.
AUTO Button
ALARM Button
PRINT Button
CHANNEL Button
SETUP Button
DOWN Button
UP Butt
on
AUTO ZERO Button
FREEZE Button
MARK Button
POWER indicator
Power indicator
Charge indicator
Charge indicator
