Cadence II Fetal Monitor Service Manual
34
2.1.7 Connecting with Personal Computer (PC)
Connect RS-485/232 socket of the monitor (see Figure 2-13) with PC via special
RS-232 cable provided by EDAN. Refer to CADENCE Insight User Manual.
Chapter 3 Installing the Monitor

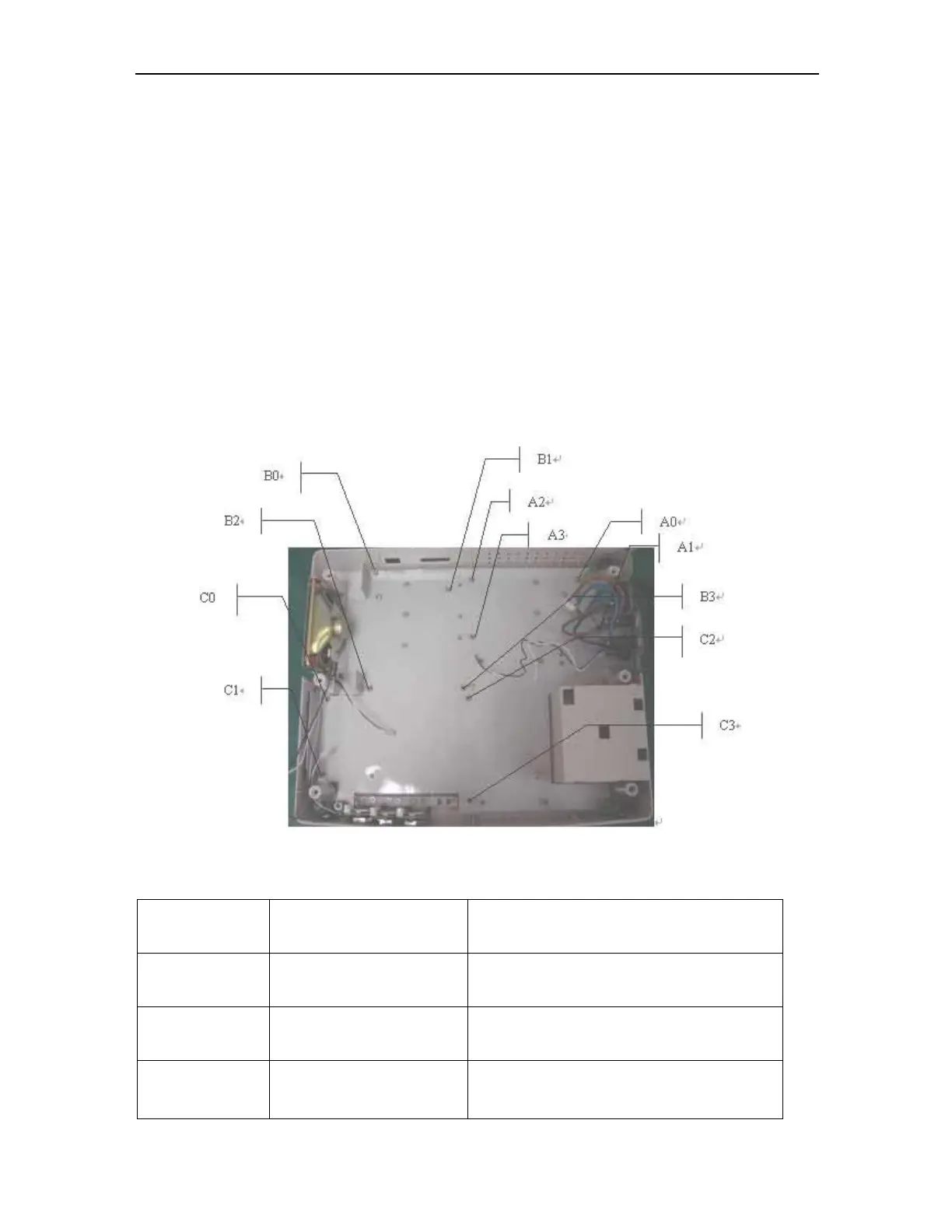

Figure 3-1 overview of the back panel and the position of the screws which fixup the functional
boards
Table 3-1
The position
The type of the screws
Functional board
A0, A1, A2, A3
M3X5
The power board
B0, B1, B2, B3
Bulletheaded M3X6
The main board
C0, C1, C2, C3
Bulletheaded M3X6
The fetal monitor board
NOTE: use the screws to fixup the functional board according to the position
