Cadence II Fetal Monitor Service Manual

－ 38 －

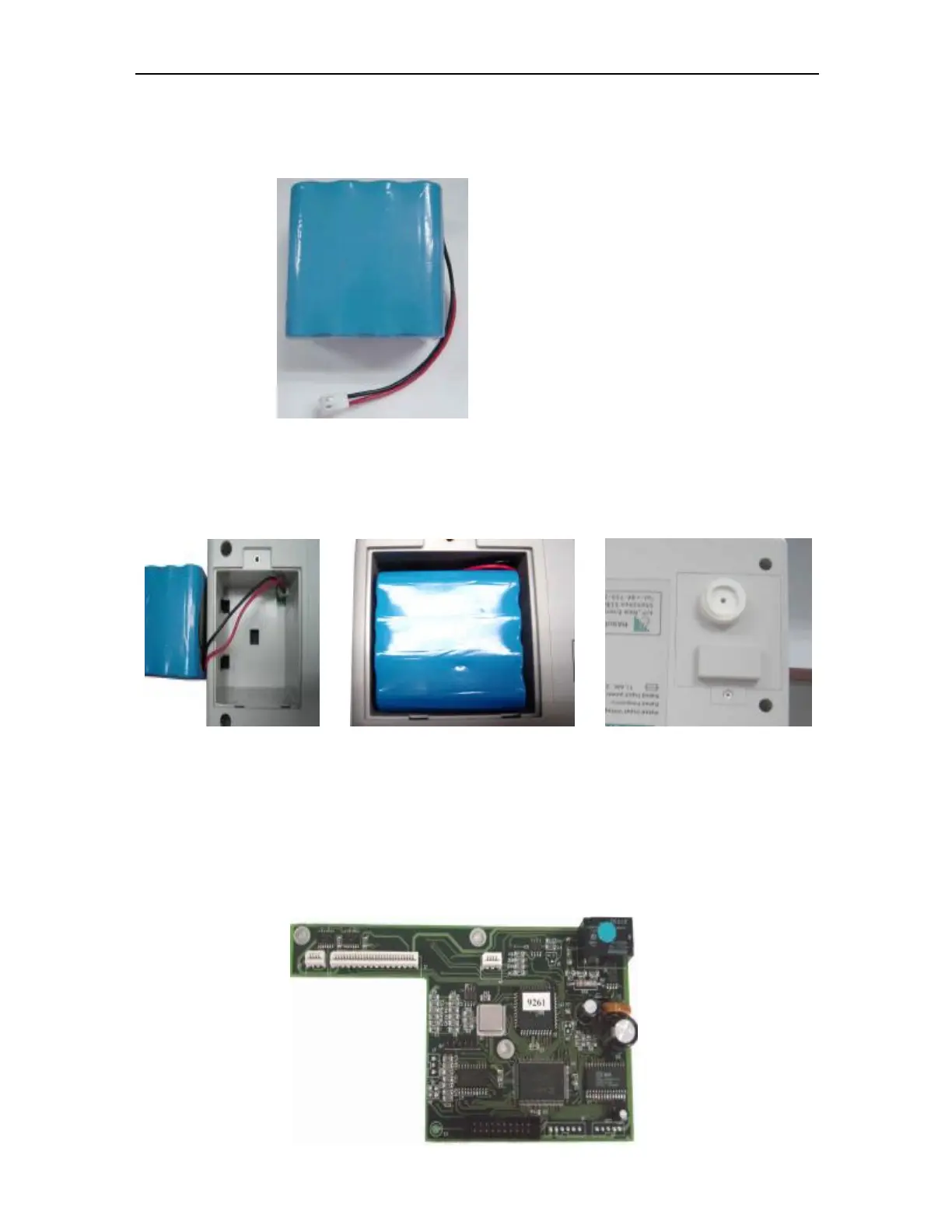

3.4 Installing battery

Figure3-10 the battery

Figure 3-11 Installing the battery

connect the wires place the battery close the door of the battery

Note: reverse the back panel ,you can see the door of the battery.

3.5 Installing the print board

Figure 3-12 the print board
