Cadence II Fetal Monitor Service Manual
－ 35 －
3.1 Installing Power Supply Board

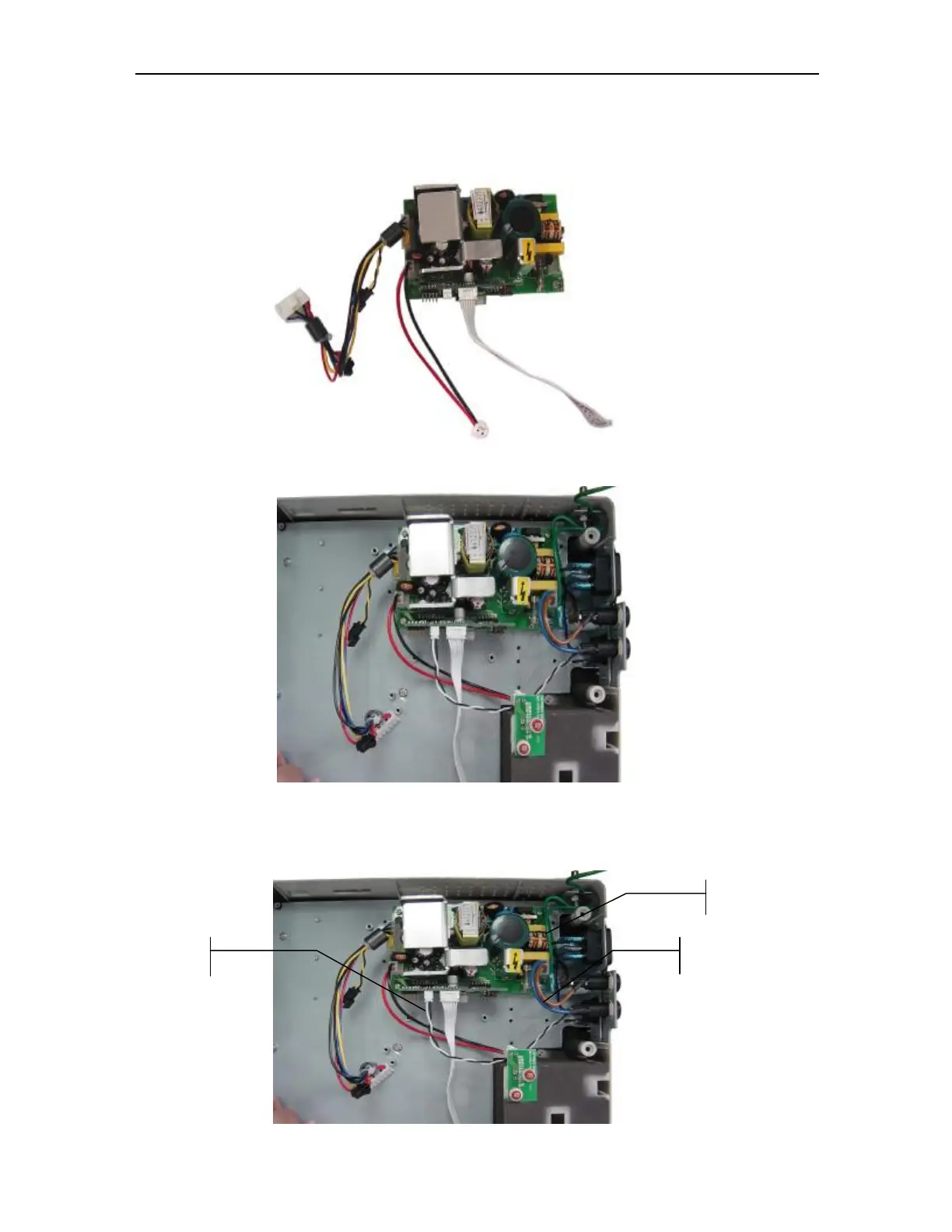

Figure 3-2 the power board
Figure 3-3 fixup the power board on the back panel
NOTE: connect the three wires with the power supply board as showing in figure 3-4
Figure 3-4 connect the wires
wire 1
wire 3
wire 2
