Chapter 4
| Power and Grounding
Power Supply Modules
– 30 –

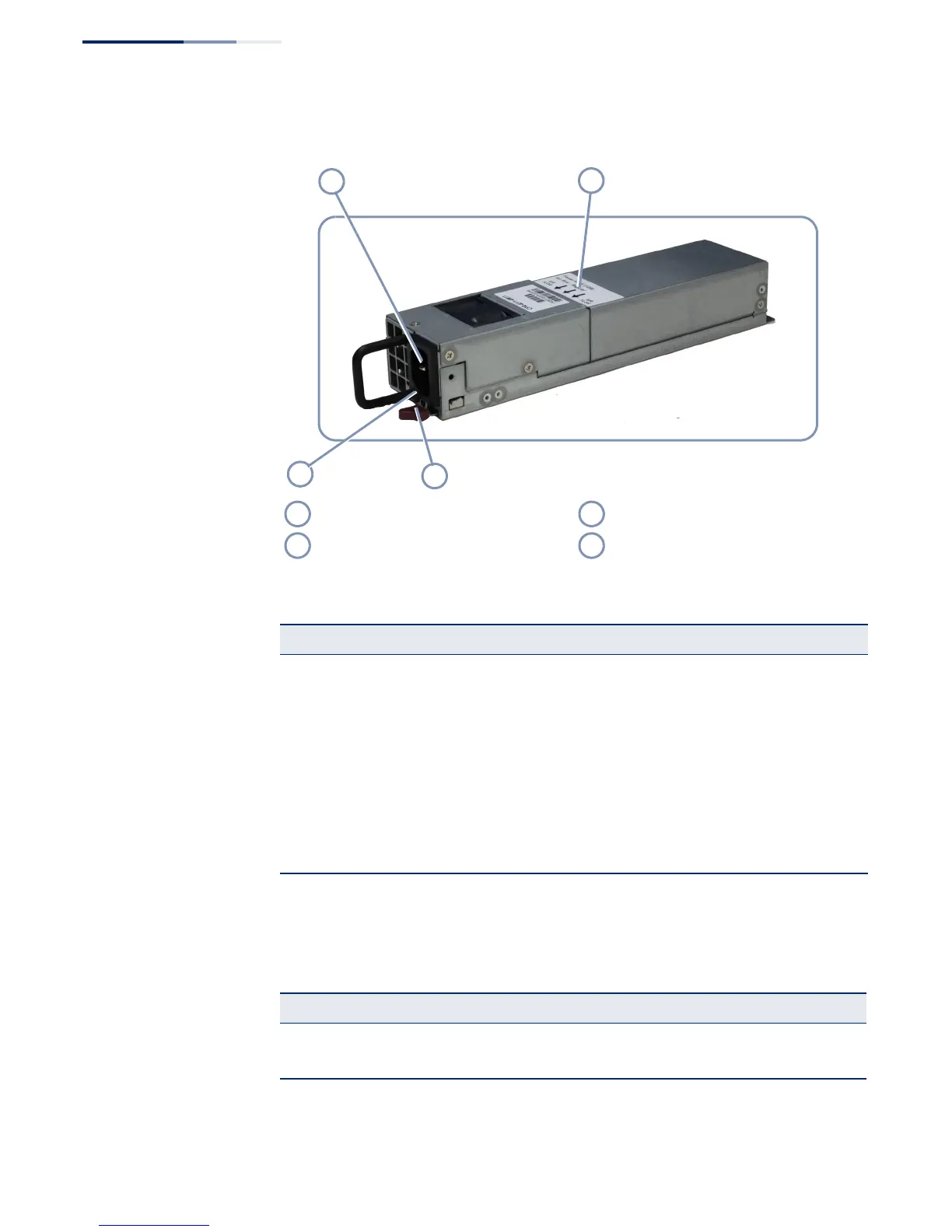

Figure 16: AC Power Supply Module
The PSU also includes an AC power status LED. This LED is described in the
following table.
AC Power Socket Release Lever
Power Supply Module LED Label indicates airflow direction of PSU
Table 3: AC Power Supply Module Specifications
Item Description
AC Input 100-240 VAC, 50-60 Hz, 6-3 A
DC Output +5 Vsb @ 3 A
12 Vdc @ 33 A
Power Supply 100-240 VAC, 50-60 Hz, auto-sensing; hot pluggable
350 Watts@ 220V/110V per module
Power Consumption 258 Watts maximum
Maximum Current 6 A @ 100 VAC
3 A @ 240 VAC
Size W x D x H: 220 x 54.5 x 40.25 mm (8.66 x 2.15 x 1.58 inches)
Figure 17: Power Supply Module LED
LED Condition Status
AC Green External AC power is connected to the module.
Off External power is not connected or has failed.
