Edge-Core ECS5610-52S User Manual

Chapter 5 | Port Connections
DAC Connections
– 45 –

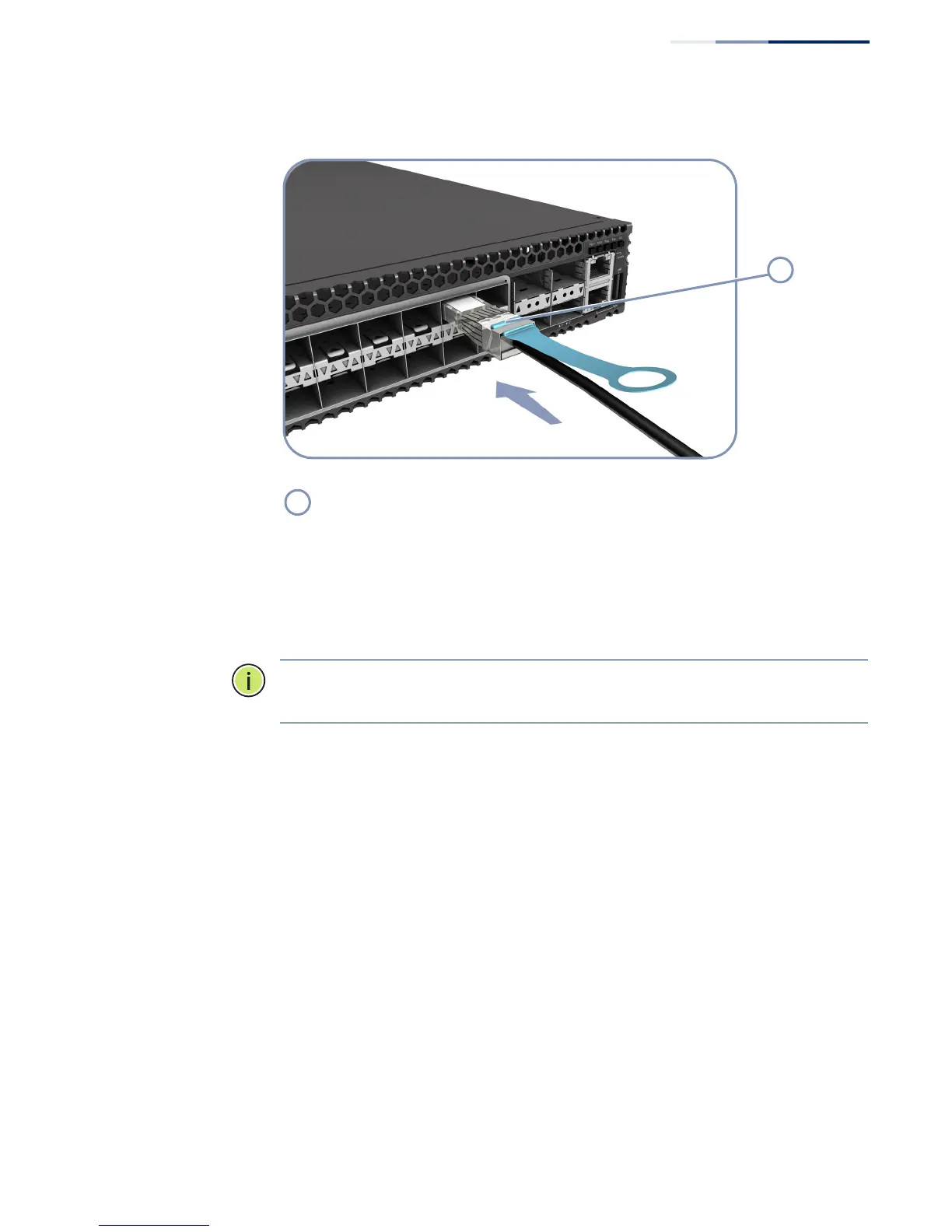

Figure 25: Making DAC Connections
2. Plug the other end of the twinax cable into an SFP+/QSFP+ slot on the switch.
3. Check that the Link LED on the switch turns on green to indicate that the
connection is valid.
Note: Connecting a 40G QSFP+ port to four 10G SFP+ ports requires the use of a
breakout DAC cable.
10G SFP+ DAC Cable
1
1
