Understanding the Port Status LEDs
– 35 –
Understanding the Port Status LEDs
The switch includes LED indicators for each port to indicate link status and network
activity. The port LEDs are shown below and described in the following table.

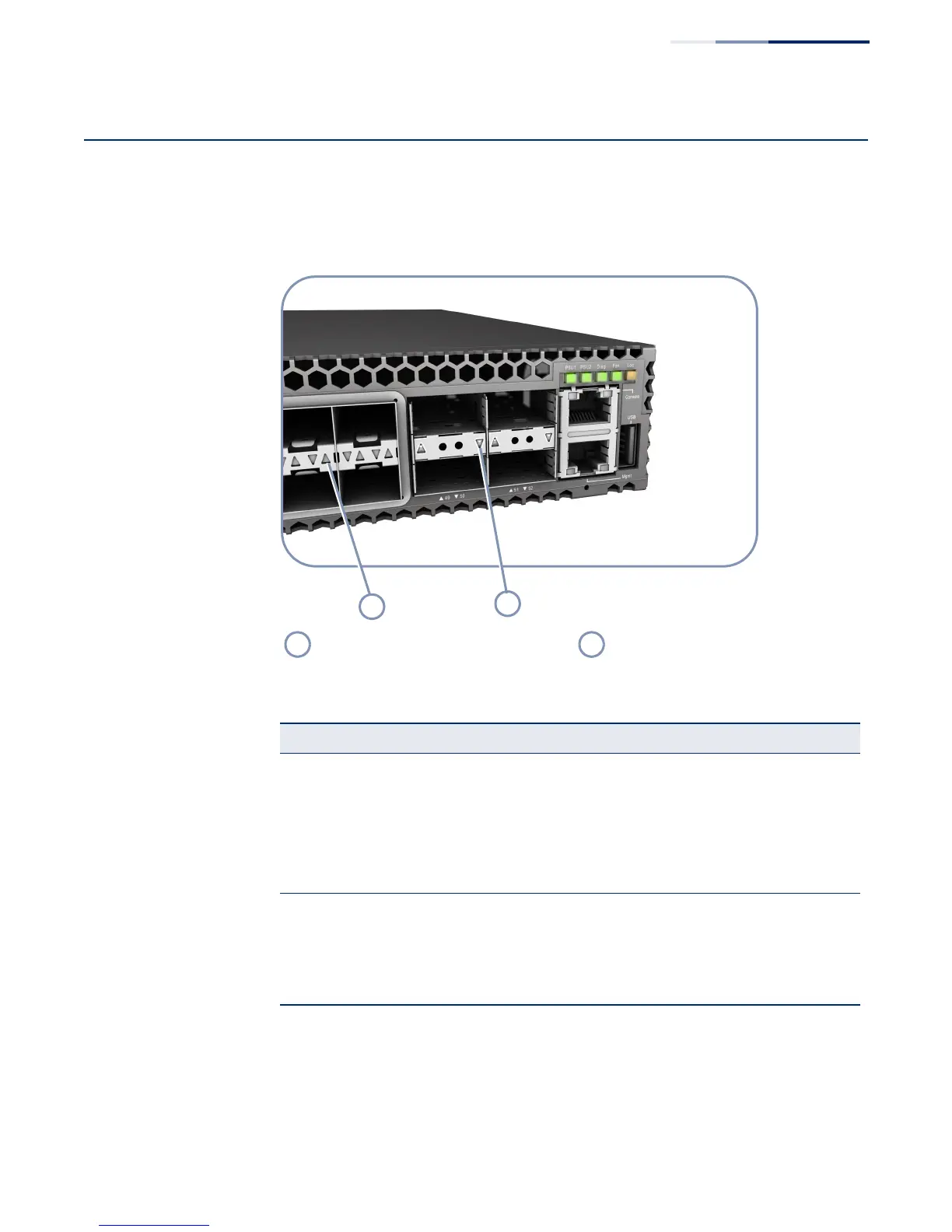

Figure 19: Port Status LEDs
Port 1-48 Link/Activity LEDs Port 49-52 Link/Activity LEDs
Figure 20: Port Status LEDs
LED Condition Status
10G SFP+ Ports (1-48)
Link/Activity On/Flashing Green Port has a valid 10G link. Flashing indicates
activity on the port.
On/Flashing Amber Port has a valid 1G link. Flashing indicates activity
on the port.
Off The link is down.
40G QSFP+ Ports (49-52)
Link/Activity On Green Port has a valid 40G link.
Flashing Green Flashing indicates activity on the port.
Off The link is down.
