Chapter 5
| Port Connections
How to Connect to QSFP+ Fiber Optic Ports
– 43 –
3. Connect one end of the cable to the QSFP+ port on the switch and the other
end to the QSFP+ port on the other device. Since QSFP+ connectors are keyed,
the cable can only be attached in the correct orientation.

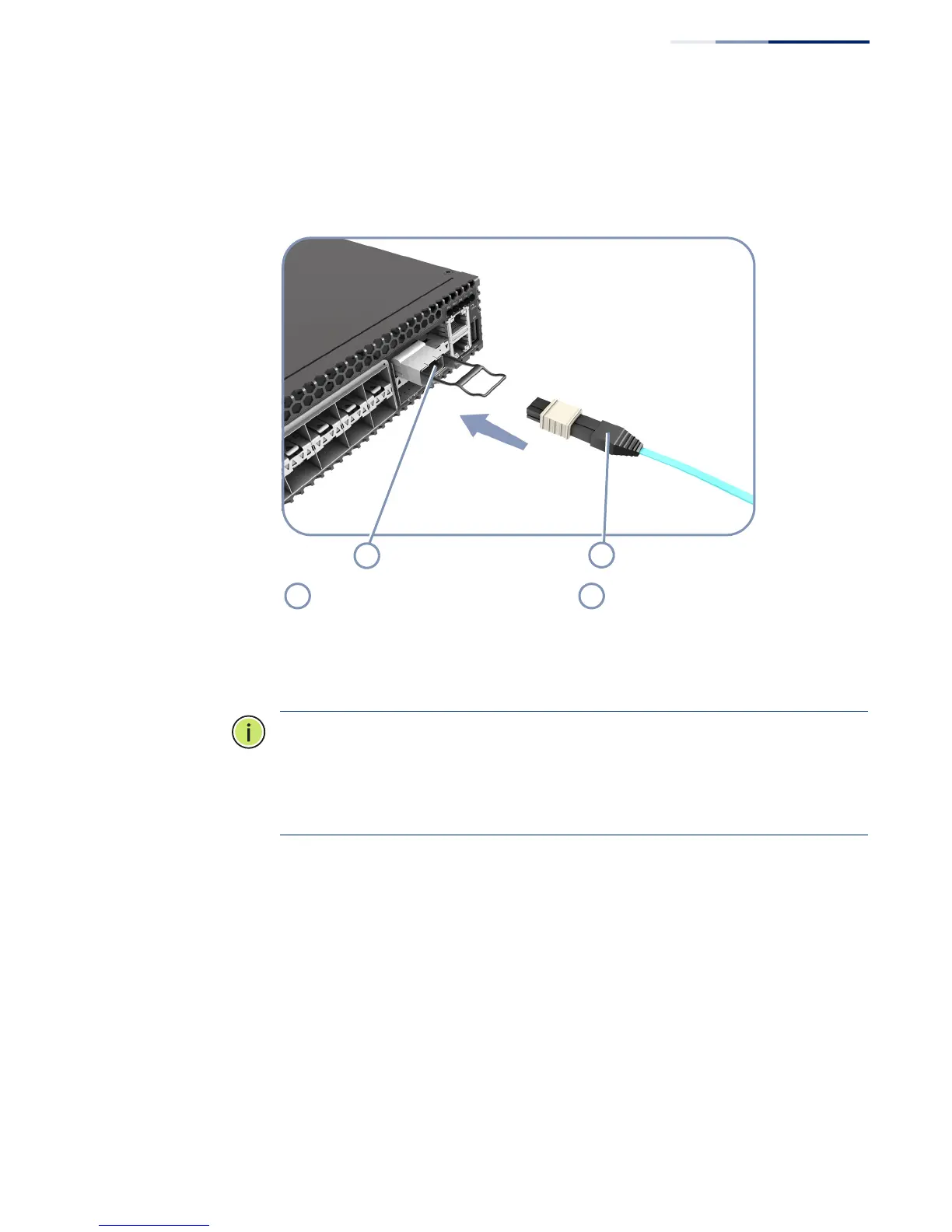

Figure 24: Connecting to a QSFP+ Transceiver
4. As a connection is made, check the Link LED on the switch to be sure that the
connection is valid.
Note:
Be sure to secure cables properly and route them away from the switch
without exceeding the minimum bending radius for fiber cables (typically a few
inches). Use cable ties to bundle cables together and secure coiled loops of excess
cable. Do not let cables hang free supporting their own weight or pull in any way
that puts stress on the connectors.
QSFP+ Transceiver Port QSFP+ Fiber Optic Cable
