DCP 350 User Manual
1 Introduction
1.1 Printer outside features
For the user’s convenience, the printer status can be seen through LCD with LED and the printer can be
controlled by two LED buttons. It takes a power via the 24V adaptor provided with the printer. Using USB
and Network port, it is communicated with the user’s PC.
The following shows the outside functional features found on your EDIsecure
®
DCP 350 printer.

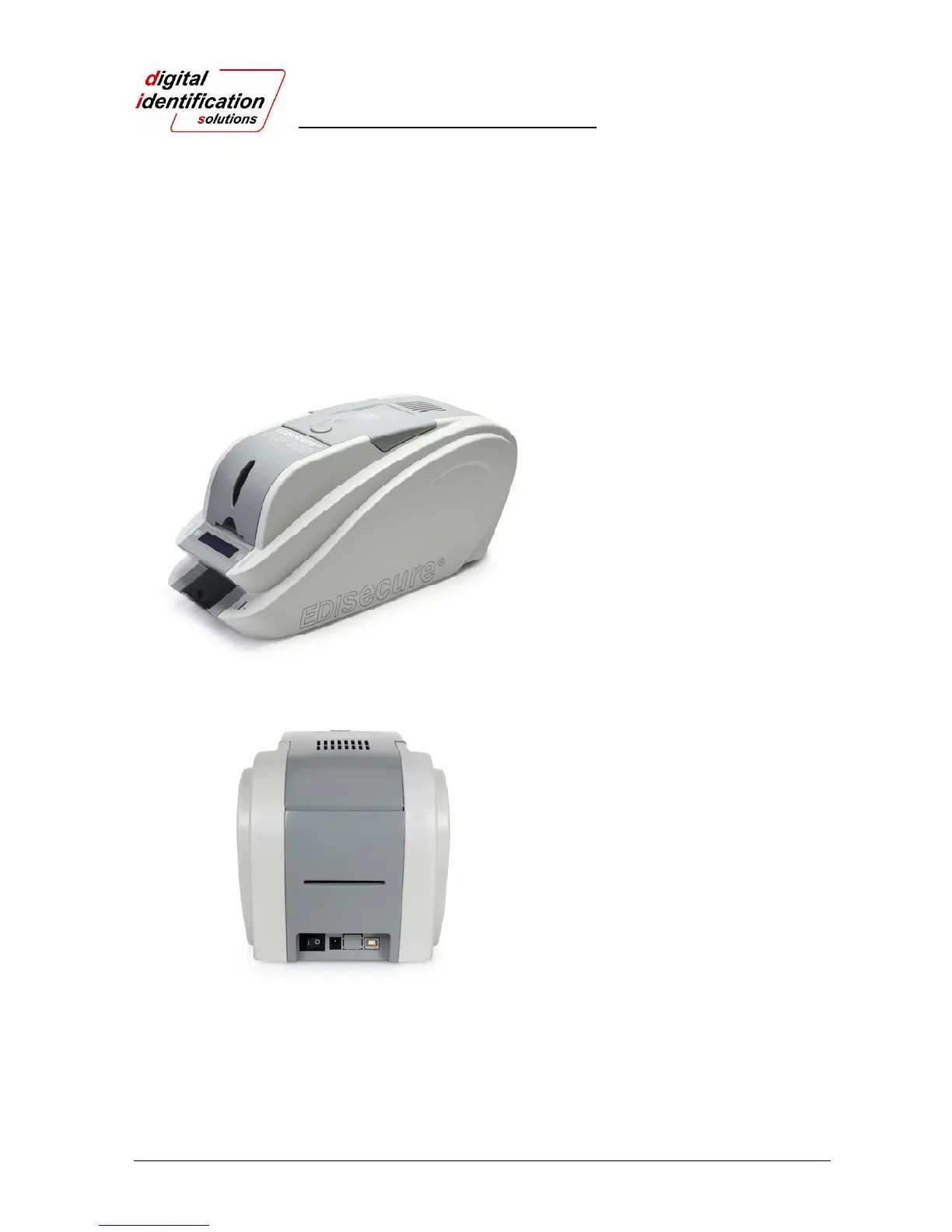

Pic.1 Printer front features
Pic.2 Printer rear features
① Top cover open button
② External contactless Smartcard
encoding position
③ Fan
④ Input hopper
⑤ LED buttons
⑥ LCD show the process status
⑦ Internal SIM reader
①
②
③
④
⑤
⑦
⑧ Backside card outlet
⑨ Power switch
⑩ 24V power connector
⑪ Network port
In case there is no network option, it
is closed.
⑫ USB port
⑧
⑨
⑩ ⑪ ⑫
