DCP 350 User Manual
1.2 Printer outside features
In the EDIsecure
®
DCP 350 printer the ribbon is installed by a ribbon cartridge which can be used semi
permanently. The following shows the inside functional features found on your EDIsecure
®
DCP 350
printer.

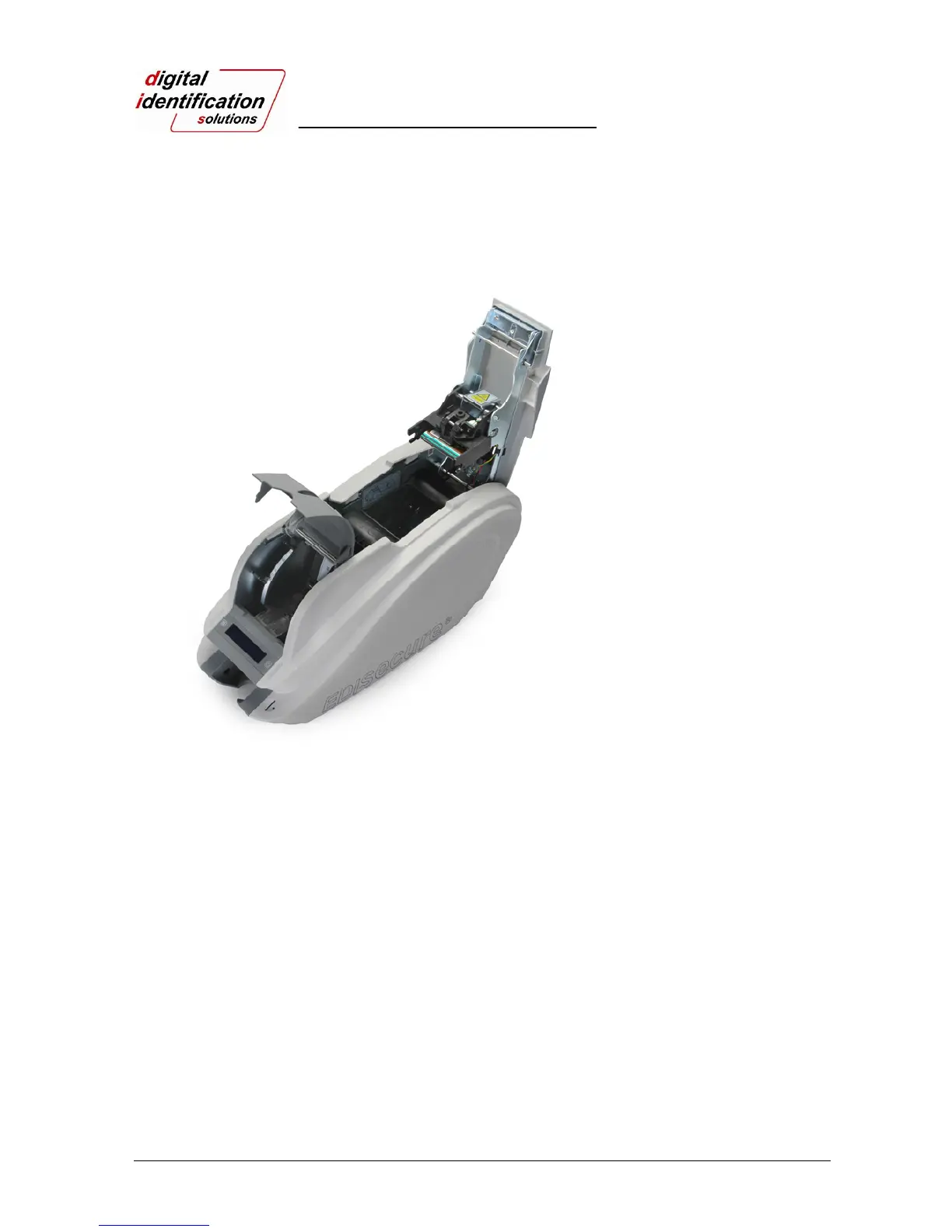

Pic.5 Inside features
① Output hopper (Stacker)
Collect the printed card and/or encoded cards.
② Input hopper
Load the cards for printing.
③ Card thickness selector
Adjust the cards thickness.
④ Ribbon cartridge
Install the ribbon and the disposable cleaning roller.
⑤ Thermal Print Head
This enables the cards to be printed.
(Caution!: This is very hot after printing. Do not touch the surface of the Thermal Print Head
with fingers or a sharp metal object to avoid degrading print quality or damaging printer head
permanently.)
⑥ External contactless encoder
Contactless smartcard encoder.
①
②
③
④
⑤
⑥
① Output hopper
② Input hopper
③ Card thickness selector
④ Ribbon cartridge
⑤ Thermal Print Head
⑥ External contactless encoder
