Edwards STP-L301 Series User Manual

STP-iXR1606 Turbomolecular Pump
MT-79E-001-D
Page 60
4
OPERATION
A. In case of Start 1) B. In case of Start 2)

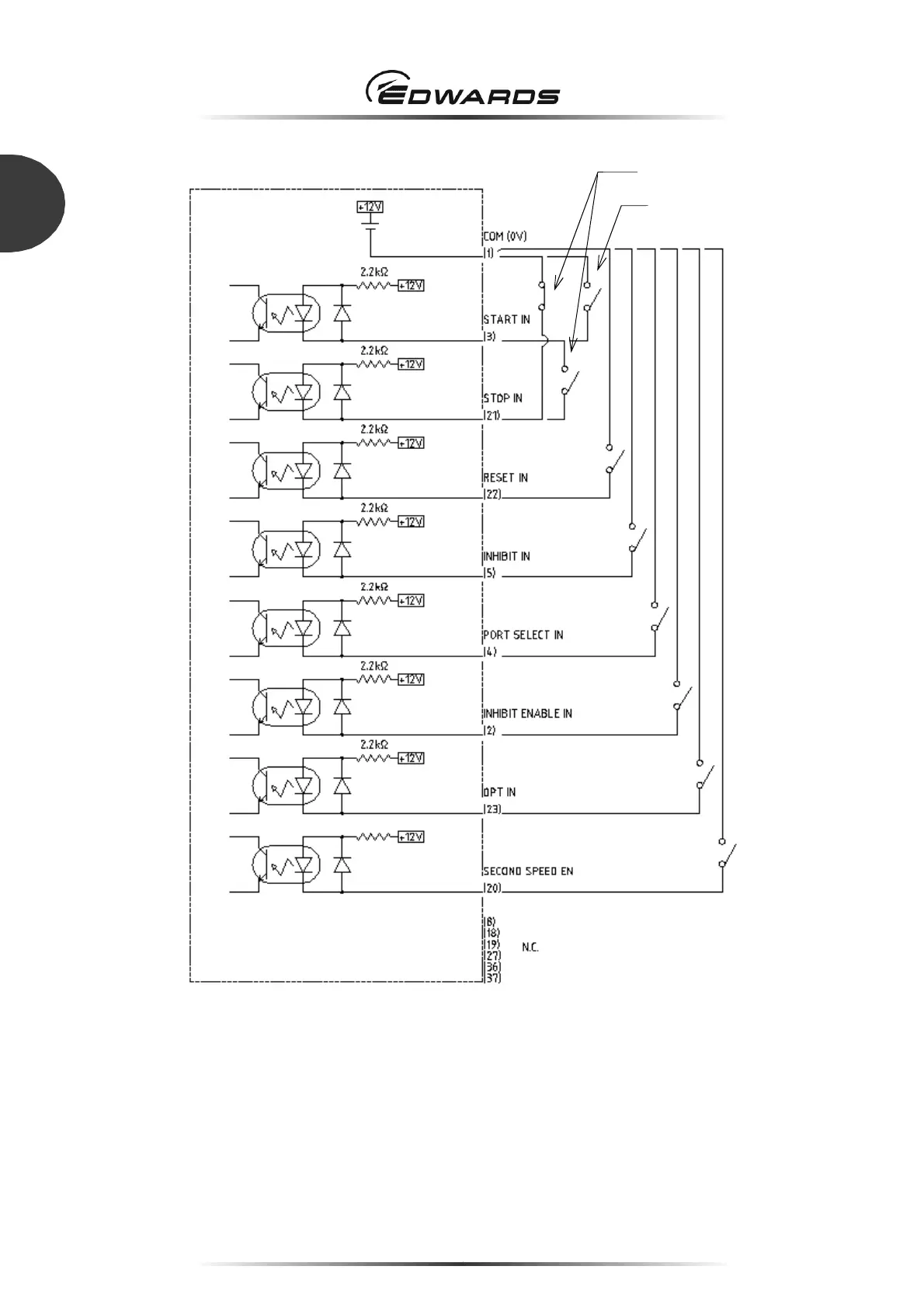

Figure 32 - X2 REMOTE input signal pins (contact input)
Note: 1 pin (0 V) is isolated from the frame ground.
Note: The input current of remote input signal is approx. 5 mA. Make sure the minimum applicable
load of the relay contact when the remote operation with the relay.
A
B
