2.2.2 Terminals

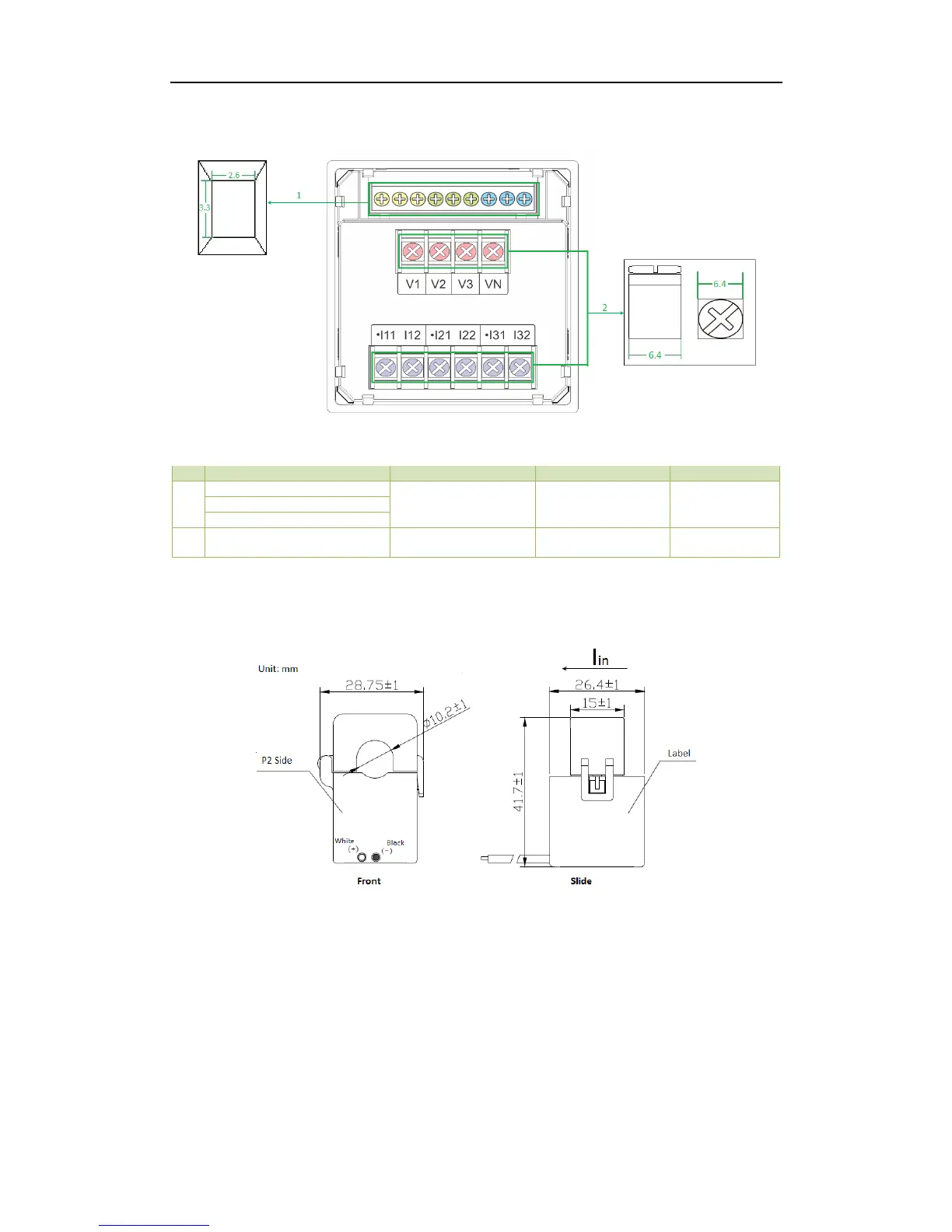

Figure 2-6 Terminal Dimensions
Terminal
Terminal Dimensions
Wire Size
Max. Torque
1
DI
2.6mm x 3.3mm
1.5mm
2
5 kgf.cm/M3
(4.3 lb-in)
RS485
Power Supply
2
Current Input/Voltage Input
6.4mm x 6.4mm
1.0mm
2
- 2.5mm
2
(14AWG - 22AWG)
6.0 kgf.cm/M3
(5.2 lb-in)
Table 2-1 Terminal Dimensions
2.2.3 SCCTs
 PMC-SCCT-5A-2.5mA-A
Figure 2-7 PMC-SCCT-5A-2.5mA-A Dimensions
