 PMC-SCCT-800A-40mA-A

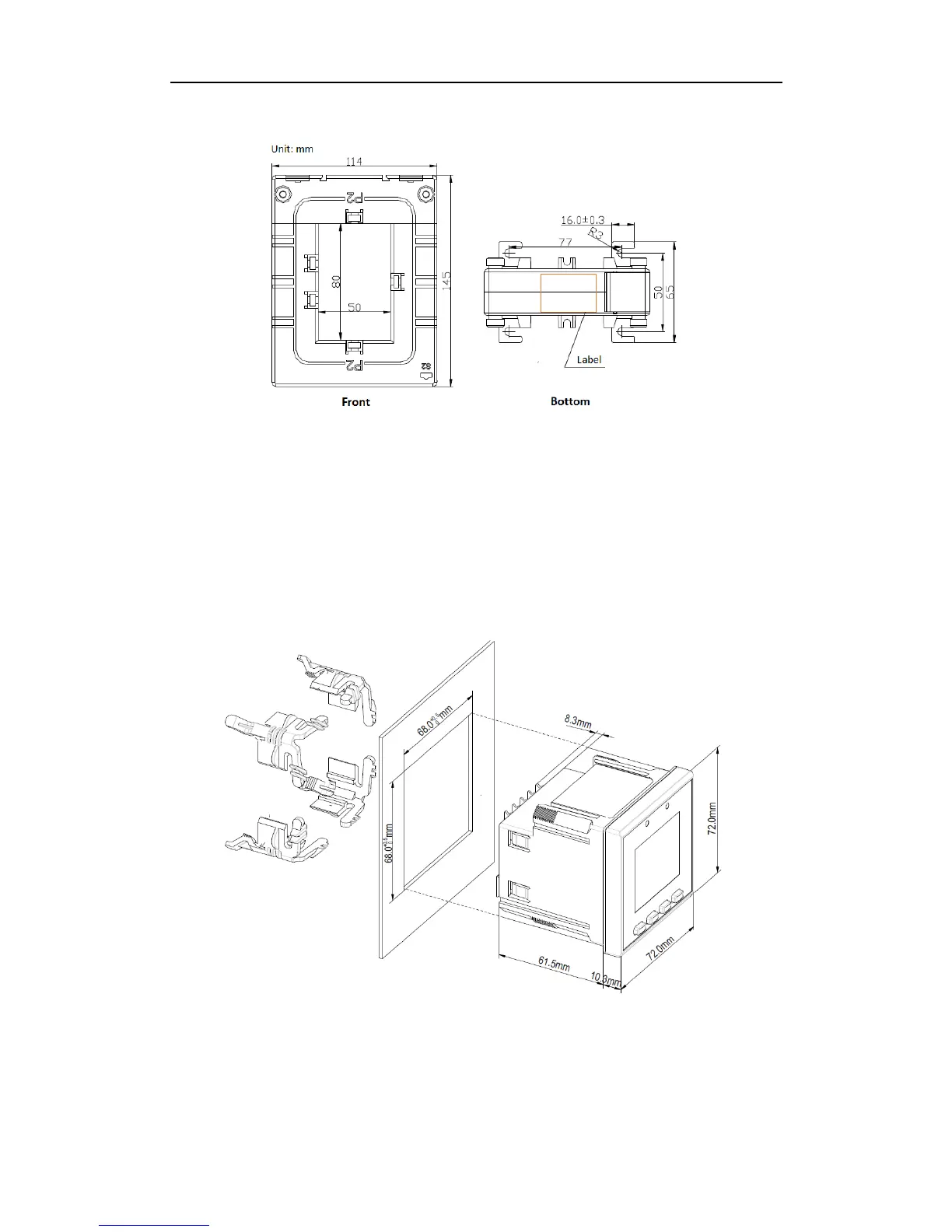

Figure 2-11 PMC-SCCT-800A-40mA-A Dimensions
2.3 Mounting
The PMC-D726M should be installed in a dry environment with no dust and kept away from heat,
radiation and electrical noise source.
Installation steps:
 Remove the installation clips from the meter
 Fit the meter through a 68mmx68mm cutout as shown in Figure 2-12 (LCD) or Figure 2-13 (LED)
 Re-install the installation clips and push the clips tightly against the panel to secure the meter
Figure 2-12 Panel Cutout (LCD)
