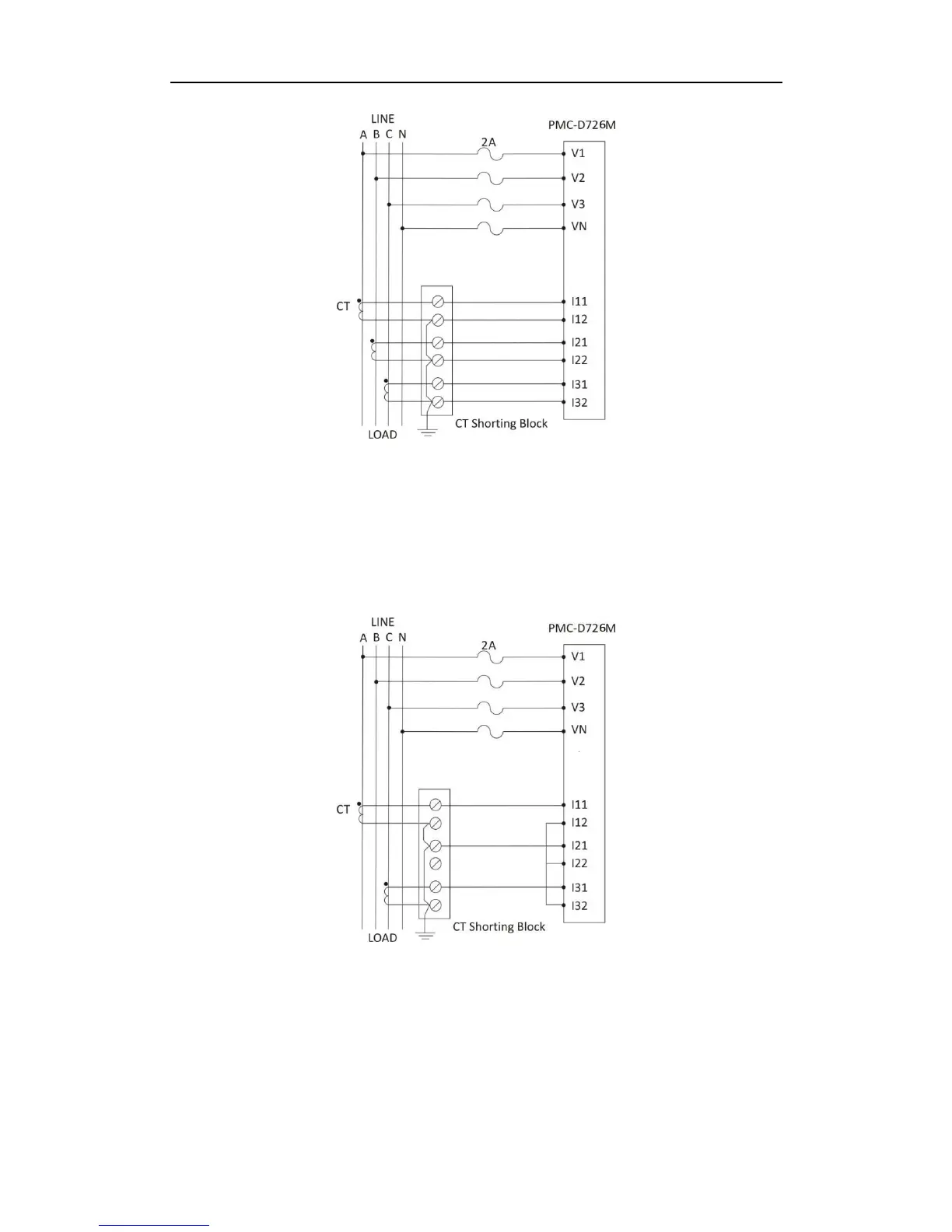

Figure 2-14 3-Phase 4-Wire Wye, no PTs, 3 CTs
2.4.2 3-Phase 4-Wire (3P4W) Wye Direct Connection with 2CTs
Please consult the serial number label to ensure that the system phase voltage is less than or equal to
the meter’s voltage input specification.
Set the Wiring Mode to Wye.
Figure 2-15 4-Wire Wye, no PTs, 2 CTs
2.4.3 3-Phase 3-Wire (3P3W) Open Delta with 2PTs and 3CTs
Please consult the serial number label to ensure that the rated PT secondary voltage is less than or
equal to the meter’s rated phase voltage input specification.
Set the Wiring Mode to Delta.
