EET PMC-D726M - Power Supply Wiring

CET Electric Technology
19

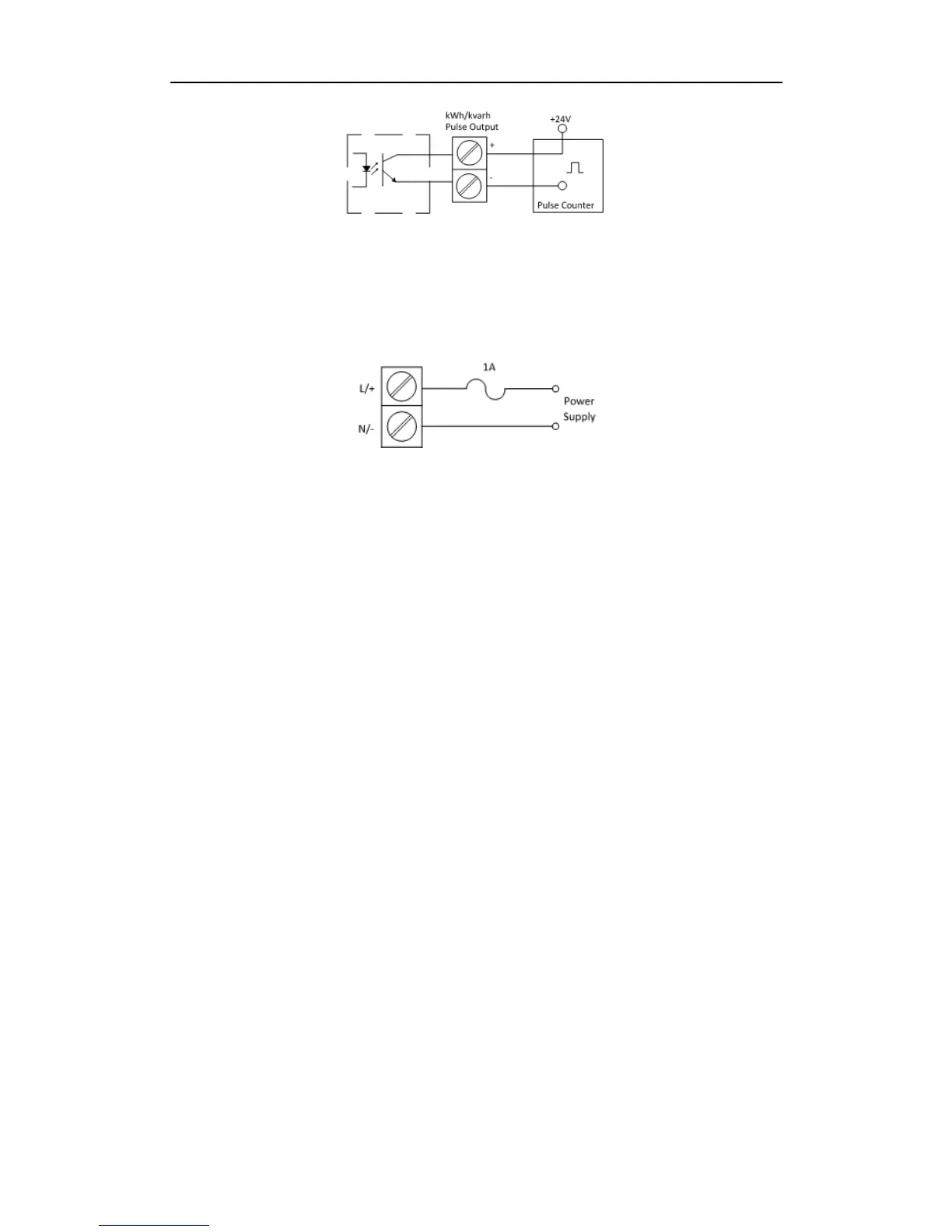

Figure 2-22 Pulse Output Connections
2.10 Power Supply Wiring
For AC supply, connect the live wire to the L/+ terminal and the neutral wire to the N/- terminal.
For DC supply, connect the positive wire to the L/+ terminal and the negative wire to the N/- terminal.
Figure 2-23 Power Supply Connections
