34

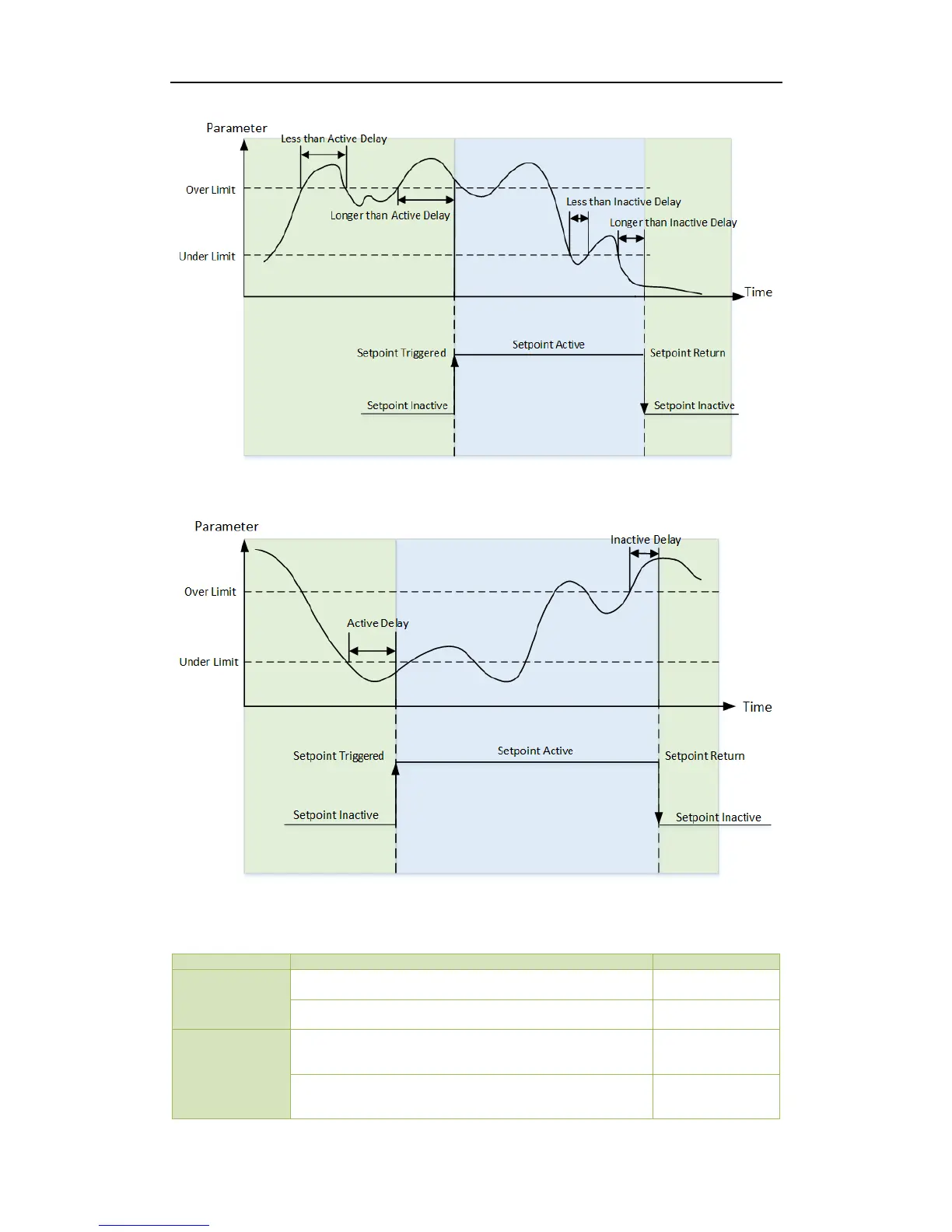

Figure 4-1 Over Setpoint
Figure 4-2 Under Setpoint
Setpoints can be programmed over communications and have the following setup parameters:
Setup Parameter
Definition
Options/Default*
Setpoint Type
Over or Under Setpoint.
0=Over Setpoint*
1=Under Setpoint
Setpoint
Parameter
Specify the parameter to be monitored.
See Table 4-8
Over Limit
Specify the value that the Setpoint parameter must exceed
for Over Setpoint to become active or for Under Setpoint
to become inactive.
0*
Under Limit
Specify the value that the Setpoint parameter must go
below for Over Setpoint to become inactive or for Under
Setpoint to become active.
0*
