"VI"- USV 800-3000 VA
Device Description
s
20

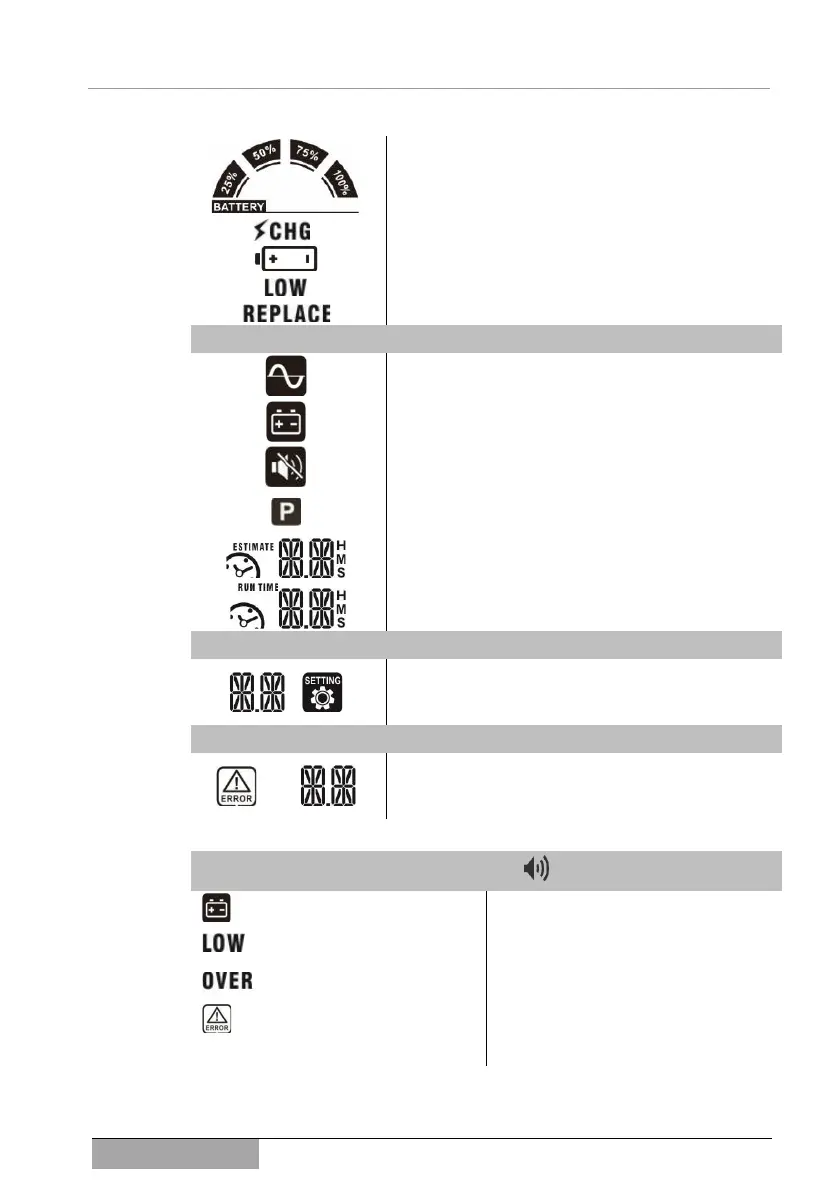

The upper circle bar graph shows the charging
status of the battery bank in %. The gradations are:
2-24%, 25-49%, 50-74%, 75-100%.
The UPS is in the charging mode.
Indicator for the battery bank.
Low battery bank status.
The battery bank should be replaced.
Operating mode information of the UPS:
This symbol indicates that the UPS is in standard
operating mode.
This symbol indicates that the UPS is in autonomous
mode.
This symbol indicates that the acoustic alarm of the
UPS is switched off (MUTE).
This symbol indicates that the non-critical UPS
outputs that can be switched off are programmed.
This time display states the remaining autonomous
time of the current support instance.
This time display states the autonomous time of the
current support instance that has already passed.
Setting mode of the UPS:
This symbol indicates that the UPS is in setting
mode whereby the number displayed represents the
menu item.
Error mode of the UPS:
This symbol indicates that the UPS is in fault mode
whereby the number displayed represents the error
code.
Acoustic information:
Autonomous mode:
Signal (BEEP), every 10 seconds;
Battery bank charge low:
Signal (BEEP), every 2 seconds;
Overload at output:
Signal (BEEP), every second;
Fault mode:
Permanent signal (BEEP);
General button confirmation:
Short signal (BEEP).
