The programmable UPS outputs listed
under
can be activated or deactivated
with these parameters. The options avail-
able are:
ENA (ENABLE): activated;
DIS (DISABLE): deactivated;

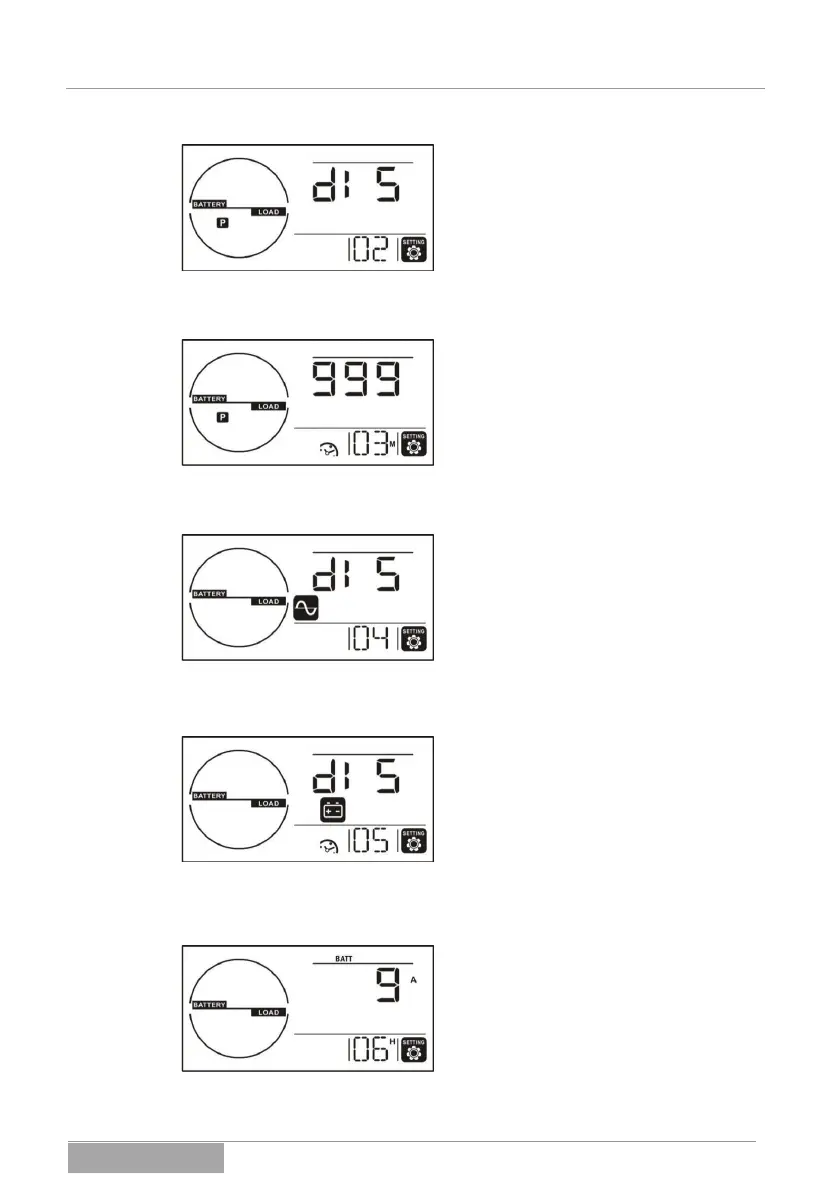

Menu page 3: Programmable outputs, support time
If the programmable UPS outputs in menu
page 2 are activated, the support period
can be defined here. The value range of
0…999 minutes can be selected; 999 is
the standard setting.
Menu page 4: Polarity detection for the UPS
If, for example, the mains plug (UPS input)
is disconnected from the wall socket and,
rotated 180°, plugged in again, the device
registers a polarity (SITE FAULT). This
function can be activated with ENA and
deactivated with DIS (standard).
Menu page 5: Definition of the support time (autonomous time)
The support time for all outputs can be
defined here. The following settings are
available:
0…999: Support time in minutes;
DIS: no setting => maximum support time
(standard setting);
Com.: at 0, the support time is 10 seconds.
Menu page 6: Total capacity of the UPS (+ external battery bank)
Please enter the total capacity of the
system battery bank here (UPS battery
bank + external battery bank). The value
range of 0…999 Ah is available for selec-
tion.
A correct setting is important for the
internal calculations!
