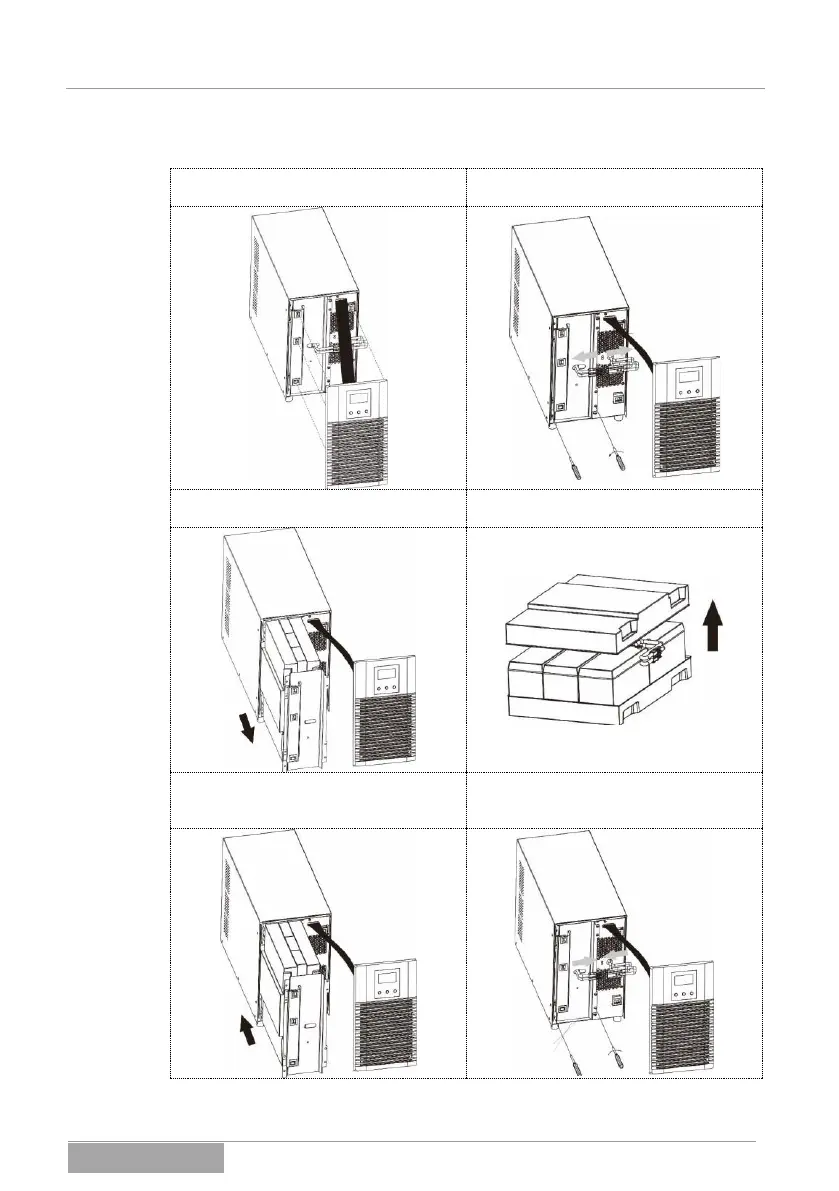

The following applies for the MTX series with 3000 VA:
Step 1: Remove the front cover of the
UPS.
Step 2: Open the electrical connection
and remove the battery bank cover.
Step 3: Pull the battery bank com-
pletely out of the UPS.
Step 4: The battery bank trays must
be open to replace the batteries.
Step 5: After the battery replacement,
slide the new battery bank completely
into the UPS again.
Step 6: Attach the battery bank cover
and connect the electrical connection.
