EFI Fiery User Manual

16Service Guide: EFI Fiery Central integrated server
Replacing parts

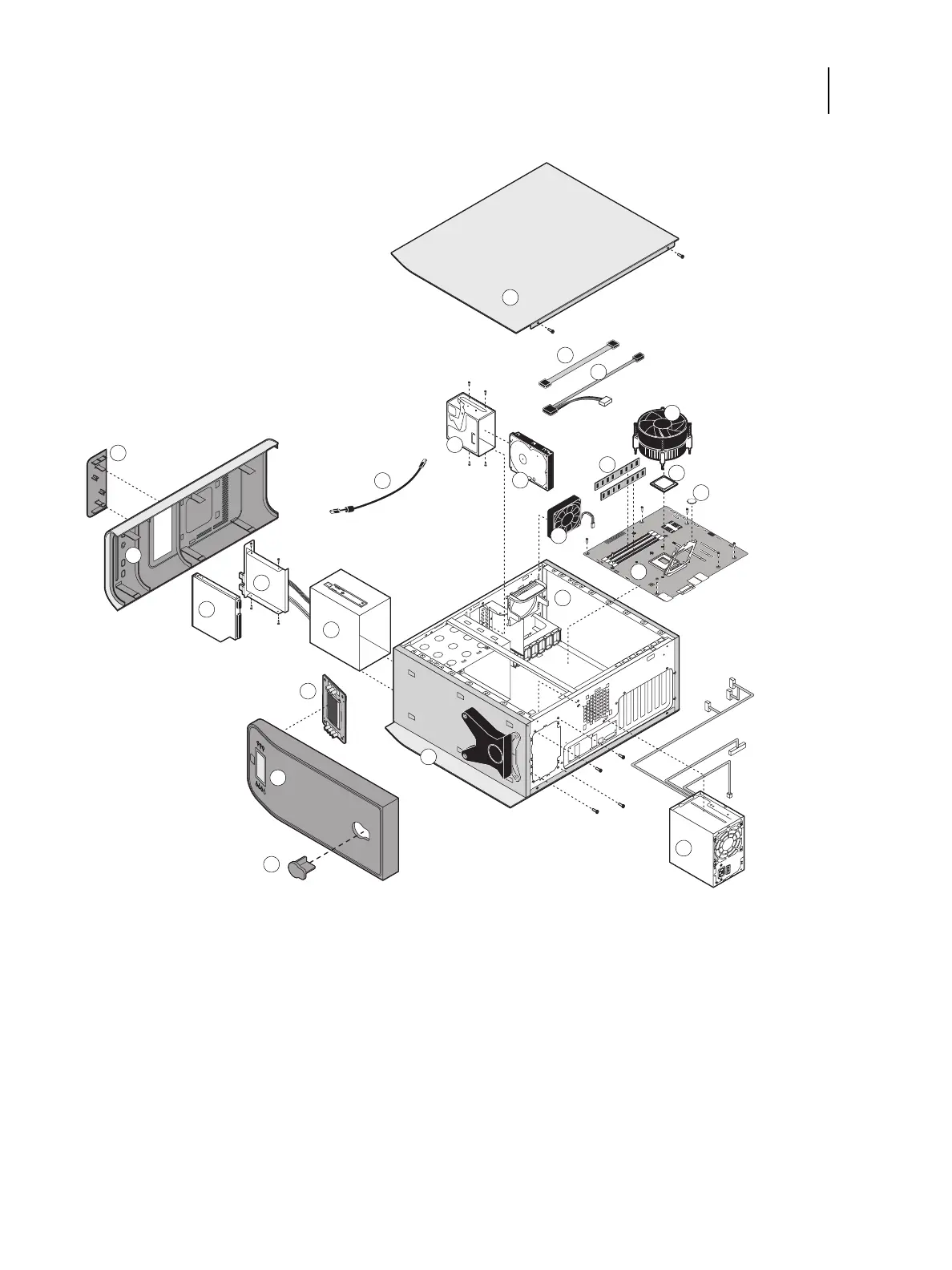

Figure 4: Exploded view of components
1 Top panel plug 7 Front panel 13 Hard disk drive data cables 19 Motherboard
2 Top panel 8 Upper faceplate 14 DVD drive power/data
combination cable
20 Fan
3 User interface board (UIB) 9 UIB cable 15 CPU cooling assembly 21 Chassis
4 Component sled 10 Hard disk drive bracket 16 DIMMs 22 Power supply
5 Switch bank assembly 11 Hard disk drive 17 CPU 23 Side panel (right)
6 DVD drive 12 Side panel (left) 18 Battery
Note: UIB buttons, CPU fan cable, tie-wraps, cable clamps, dongle(s), and external cables are not shown.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

EFI Fiery Specifications

General

Category	Server
Processor	Intel Xeon
Operating System	Linux
Connectivity	Ethernet, USB, optional Wi-Fi
Supported Printers	Varies by model (designed to support specific printer models from various manufacturers)
Software	Fiery Command WorkStation
