17Service Guide: EFI Fiery Central integrated server
Replacing parts

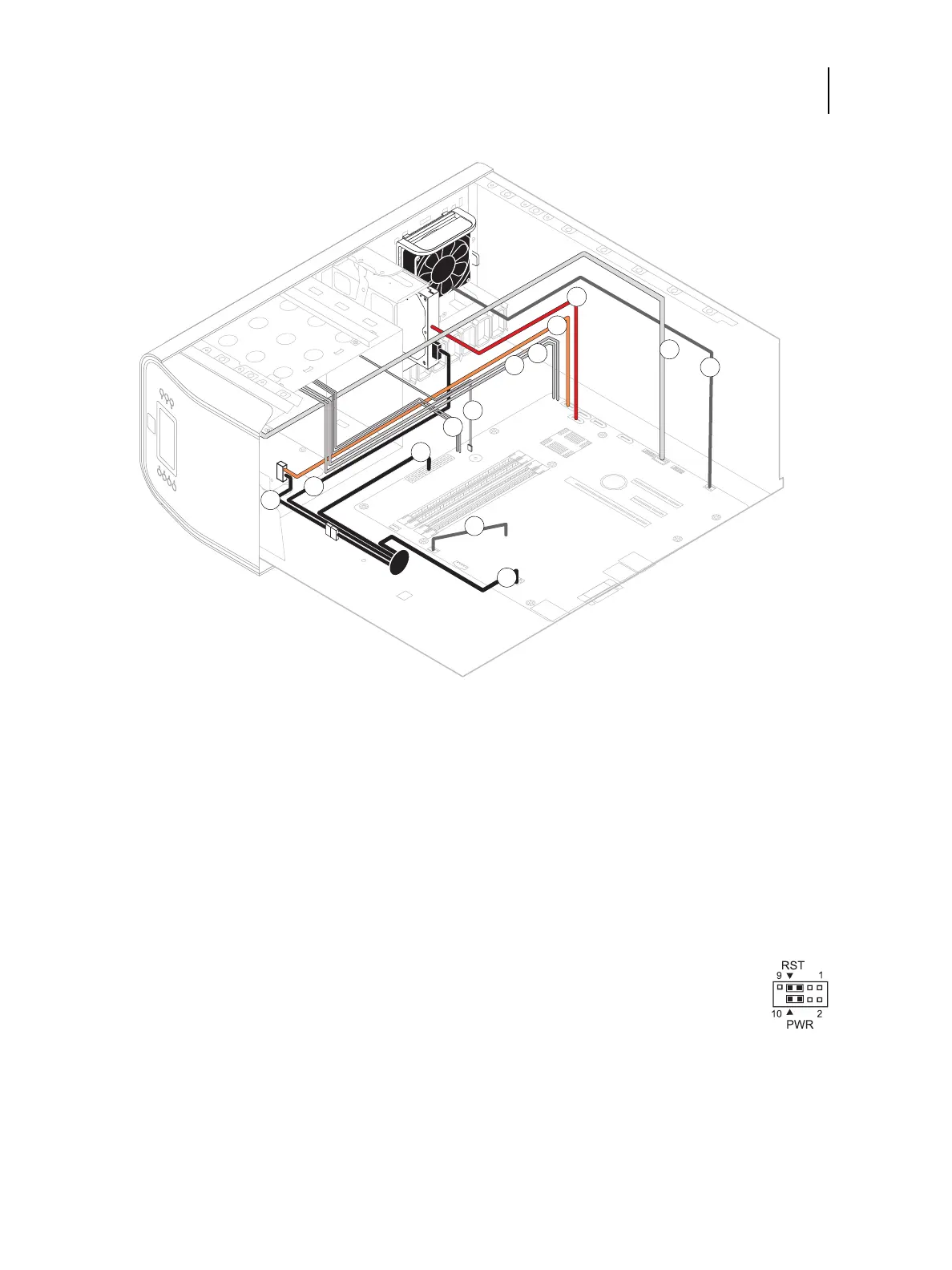

Figure 5: Power and data cable connections
Cable key From To
1 Power supply cable Power supply a. CPU power connector (PS connector)
b. Motherboard power connector (J18)
c. DVD drive power connector (combined with
data)
d. Hard disk drive power connector
2 Front panel USB port cables Front panel Motherboard connectors J24
3 UIB cable User interface board Motherboard connector J27
4 Power cable Front panel Motherboard connector J15
5 Reset cables Front panel Motherboard connector J15
Align triangle on cable connector as shown.
6 Speaker cable Front panel Motherboard connector J83
7 Front panel fan cable and 3-pin
extension cable
Front panel fan Motherboard connector REAR FAN
8 DVD drive power/data combo cable DVD drive Motherboard connector SATA_6G_0
1b
1c
8
5
1a
4
6
1d
3
2
9
10
7
