Replacing parts

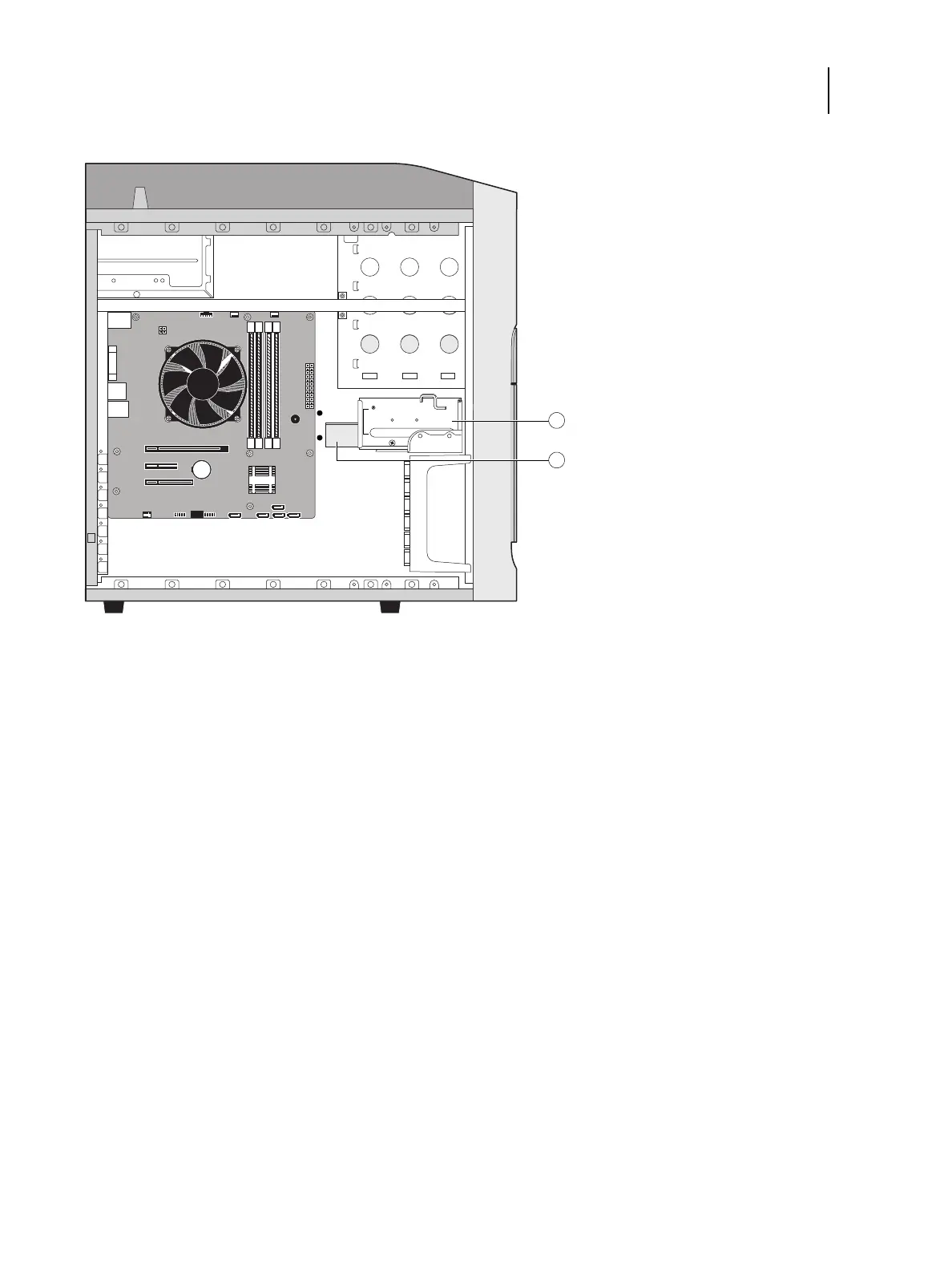

Figure 18: FC integrated server hard disk drive
The hard disk drive is mounted inside a bracket.
If you are replacing the hard disk drive with a new one, you will need:
• The appropriate system software and documentation for the FC integrated server that you are servicing.
• A compatible version of the user software for the networked computers that will print to the FC integrated server.
To remove the hard disk drive
1 If you are removing the hard disk drive in order to install a new drive, give the network administrator the
opportunity to print the Job Log and save any custom simulations. If possible, print the Configuration page and
Font List.
2 Shut down and open the FC integrated server (see page 18).
To access the hard disk drive, you must remove the left panel.
3 Remove the power supply cable from the hard disk drive.
4 Remove the hard disk drive data cable from the hard disk drive.
5 Remove the screw securing the hard disk drive bracket to the bracket shelf.
1 Hard disk drive bracket
2 Hard disk drive
Note: Printer interface and internal cables are not shown.
