INSTALLATION
10/2022 29 NP-DK50 2V-A-4_10-2022-AD
Risk of damage to pneumatic components.
Air hoses must not be broken.
11.4. Floor installation
Connect the compressor using the hoses prepared in advance in the floor, as per the installation
plan.

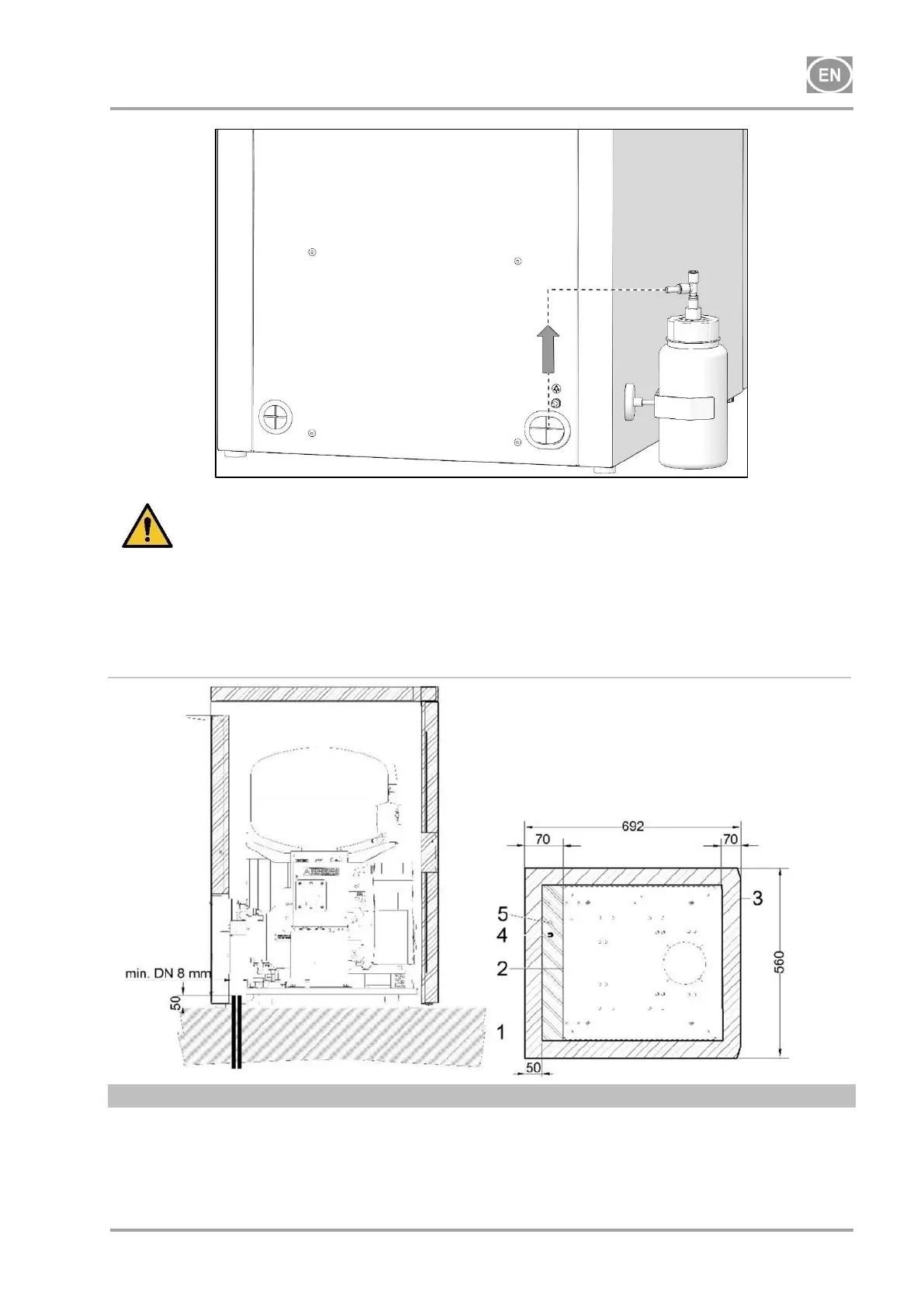

Fig. 9: Floor installation
1. Outline of the cabinet
2. Outline of the base
3. Front section - door
4. Compressed air connection G3/8
5. Power supply input
230V/50(60) Hz
3G1.0x4000
All dimensions are in millimetres
