INSTALLATION
10/2022 31 NP-DK50 2V-A-4_10-2022-AD

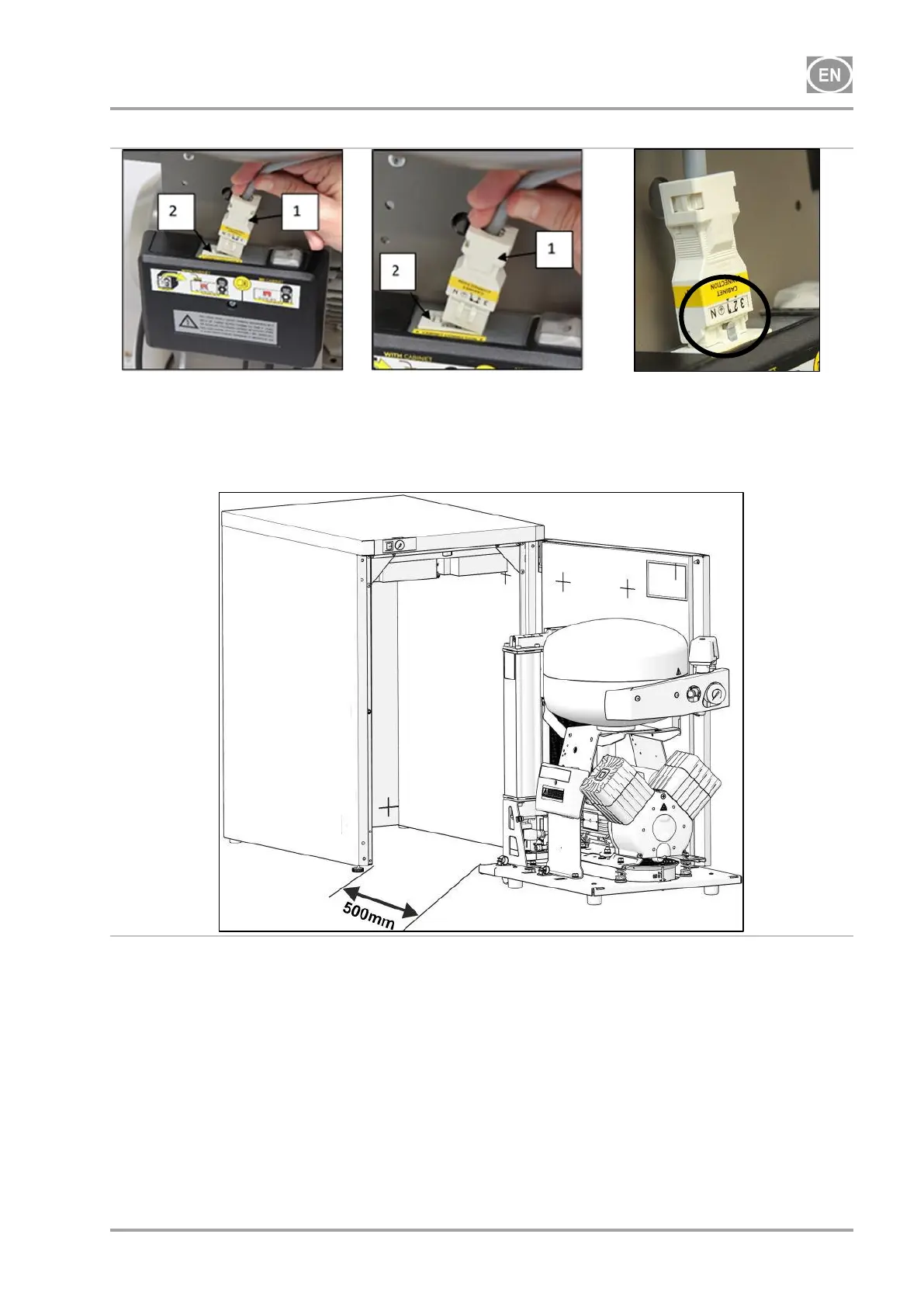

Fig. 11: Connecting a compressor installed in a cabinet
13. COMPRESSOR PLACEMENT IN THE CABINET
Position the compressor within a distance of at least 500 mm from the cabinet to facilitate
the movement of the hoses and the power cord within the cabinet (Fig. 12).
Fig. 12: Positioning of the compressor for connections
Make the pneumatic connections per Chapter 11.1.
Connect the condensate collection tank per Chapter 11.3.
Route the pressure hose, the condensate drain hose, and the power cord through the
opening in the rear wall of the cabinet.
Position the compressor at such a distance from the cabinet so the WINSTA connector can
make the electrical connection between the compressor and the cabinet (Fig. 11, Fig. 13).
