INSTALLATION
NP-DK50 2V-A-4_10-2022-AD 32 10/2022

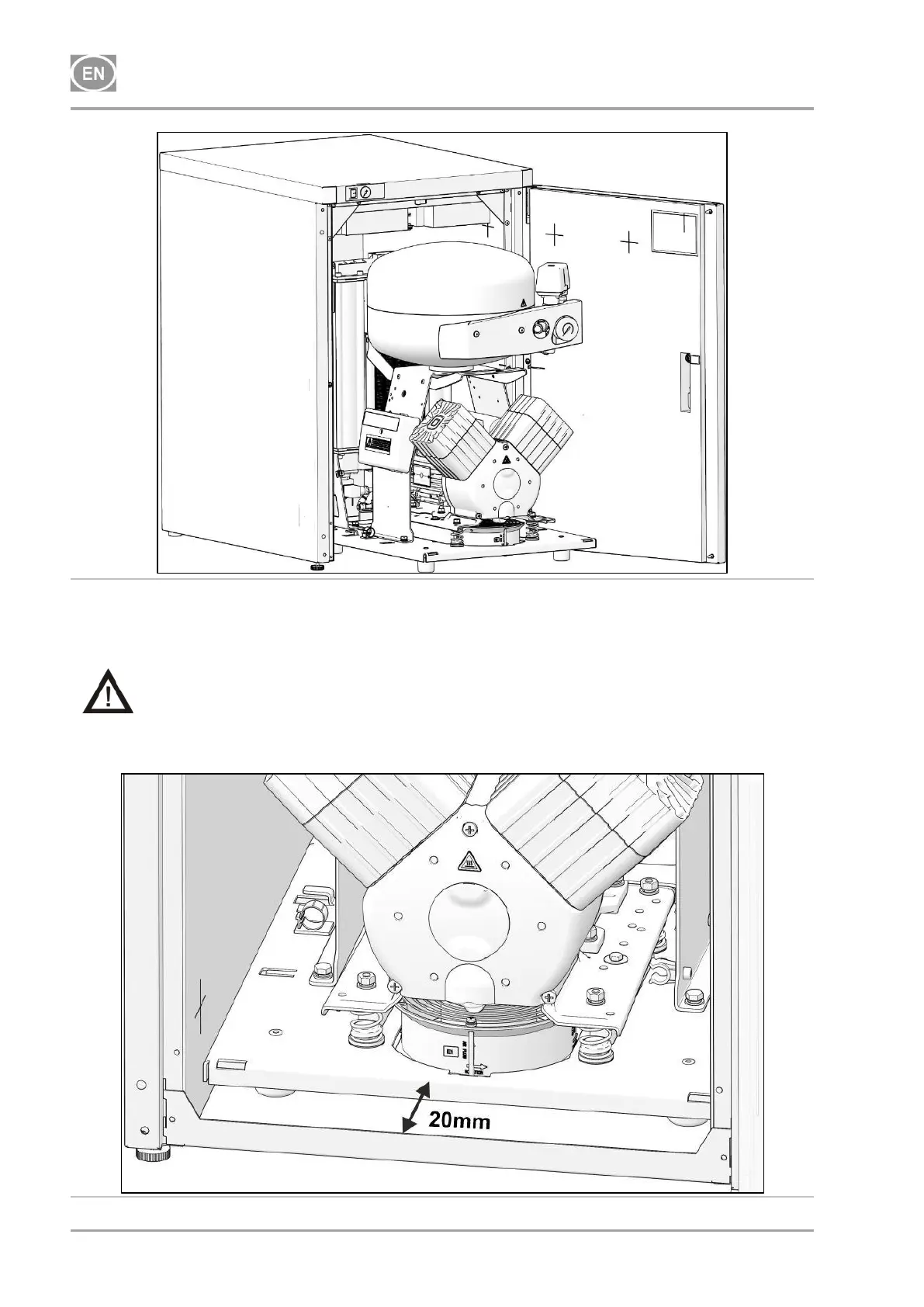

Fig. 13: Positioning the compressor for electrical connections
Electrically connect the compressor per Chapter 12.
Slide the compressor into the cabinet and secure with the connecting strip (17).
A compressor with air dryer must not be inserted to the cabinet to the stop as
there is a risk of permanent damage to the dryer.
Check to ensure the compressor is fully inserted into the cabinet using the control dimension
(Fig. 14).
Fig. 14: Positioning of the DK50 2V/M compressor in the cabinet
