D12 INSTALLATION MANUAL
ALL ON Trigger Input
A 3.5mm mono interconnect cable is used for the ALL ON Trigger Input connection. This Turn-On Trigger activates
ALL channels.
When the trigger is active all channels turn on.
When the trigger is not active all channels turn off.
S66A
D12
3.5mm mono
interconnect
cable

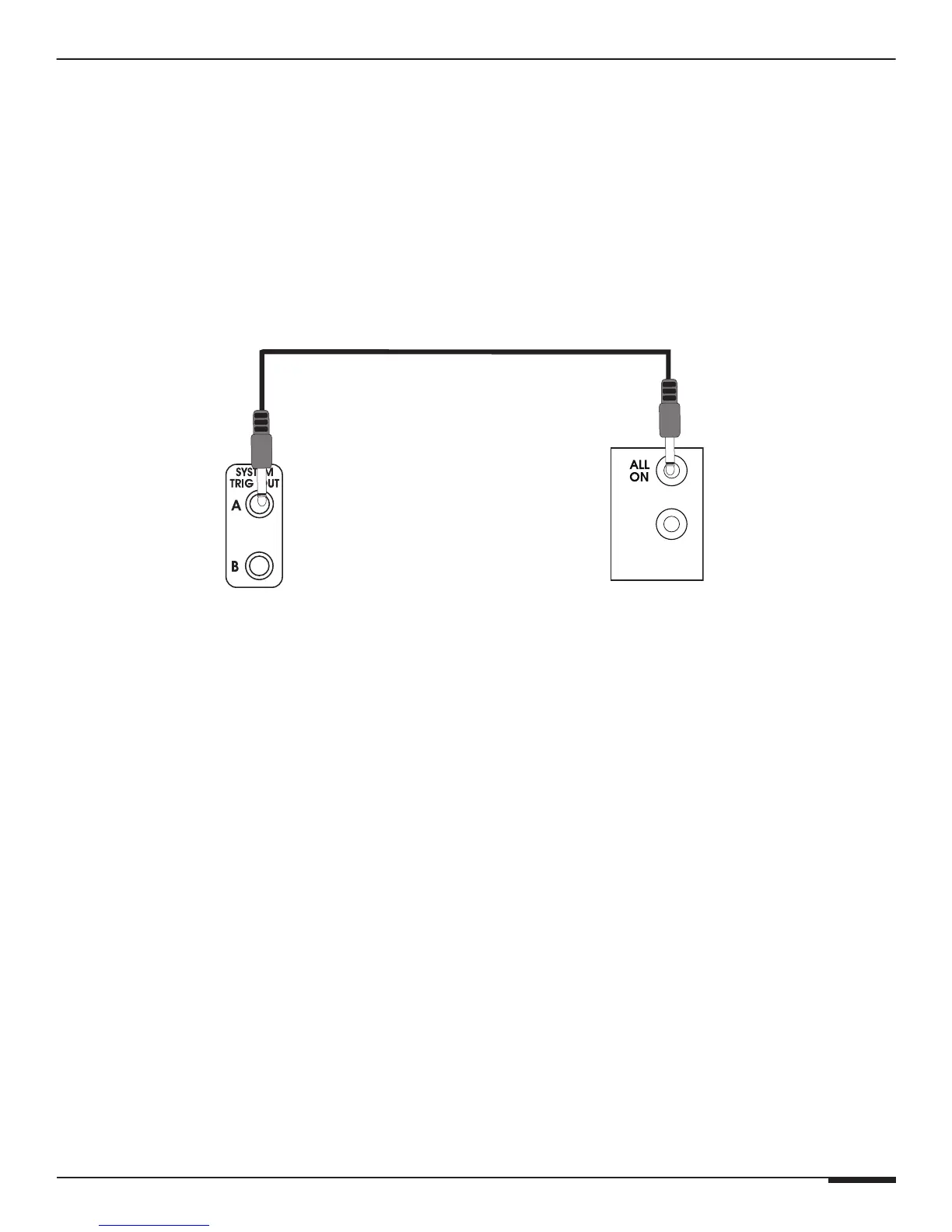

System Trigger Output to D12 All On Input
+12VDC
TRIGGER OUT
ALL ON Trigger Connection
+12VDC Trigger Out
A 3.5mm mono interconnect cable +12VDC Output Trigger is located below the ALL ON Trigger. This allows daisy
chained amplifiers to turn on and off.
This voltage is provided when any of the top or first amplifier channel(s) is active or "ON". When all amplifier chan-
nels are "OFF", the +12VDC trigger signal is removed or "OFF"
