VIA!NET LOOP INPUT/OUTPUT Connections

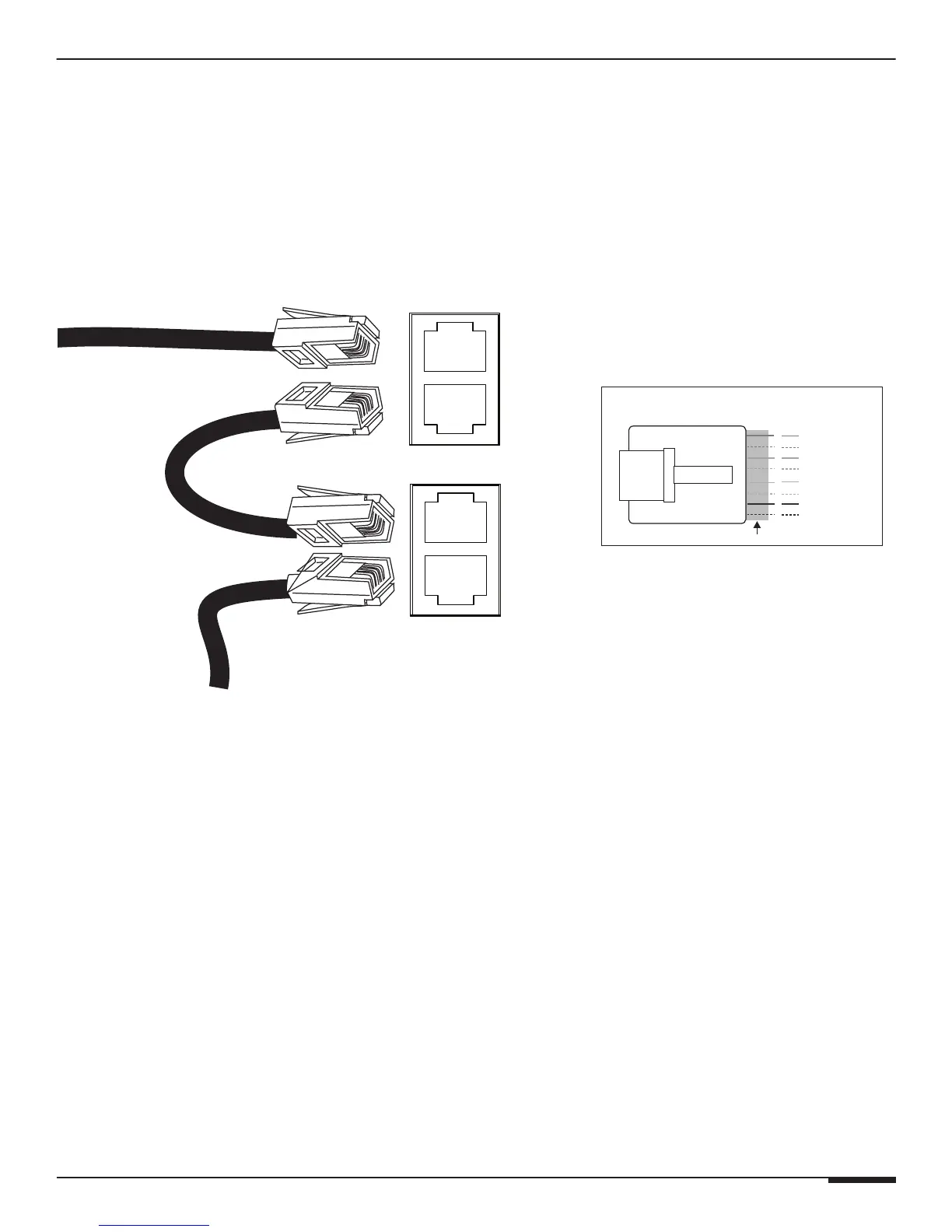

An RJ-45 VIA!NET Data Bus Loop is provided for feedback and amplifier status. Before the amplifier will pro-
vide feedback, the D12 amplifier must be set to ELAN Mode with unique VIA!NET addresses for each "D series
Amplifier."
See "Operating Mode" on page 13.
IN
VIA!NET
OUT
IN
VIA!NET
OUT
BLUE
WHITE/BLUE
ORANGE
WHITE/ORANGE
GREEN
WHITE/GREEN
BROWN
WHITE/BROWN
1
2
3
4
5
6
7
8
PIN # COLOR CODE
FRONT
CABLE
Standard ELAN RJ-45 Pin-Out
TAB
RJ-45
CABLES
D12 #1
D12 #2
VIA!NET Data Loop
